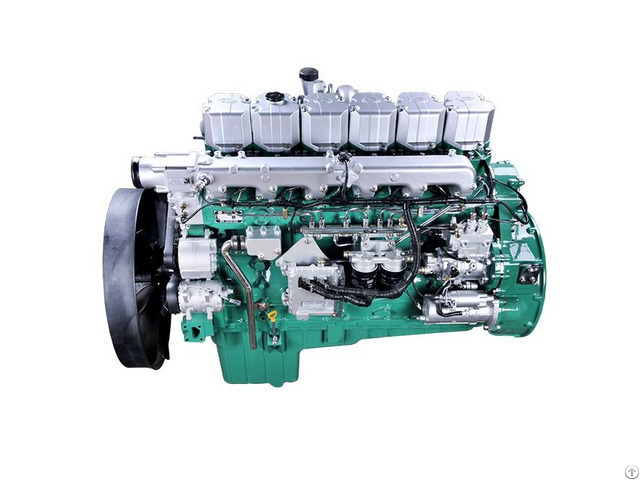

Euro Iii Vehicle Engine Ca6dm Series - China

Higher injection pressure, higher atomization rate, and more sufficient in combustion;

With reinforcement design on motion friction pair, structure components and double-layer water jacket with four-valve cylinder cover, explosion pressure is high;

EURO III CA6DM series

Model CA6DM2-35E3 CA6DM2-37E3 CA6DM2-39E3 CA6DM2-42E3

Type 6-cylinder in-line, direct injection, turbocharged&intercoo ling, common rail

Bore×Stroke (mm) 123×155

Valves/cylinder 4

Displacement (L) 11.04

Rated power (kW) 261.5 279.5 290.5 312.5

Net power (kW) 258 276 287 309

Rated speed (r/min) 1900

Maximum torque (Nm) 1600 1650 1750 1900

Maximum torque speed (r/min) 1300

Fuel consumption (g/kW·h) 190

Noise dB (A) ≤9 4.6

Technical Route common rail

Emission Compliant (TAS) EURO Ⅲ

Net Mass (kg) 1050

Length×Width×Height (mm) 1365×775×1180
