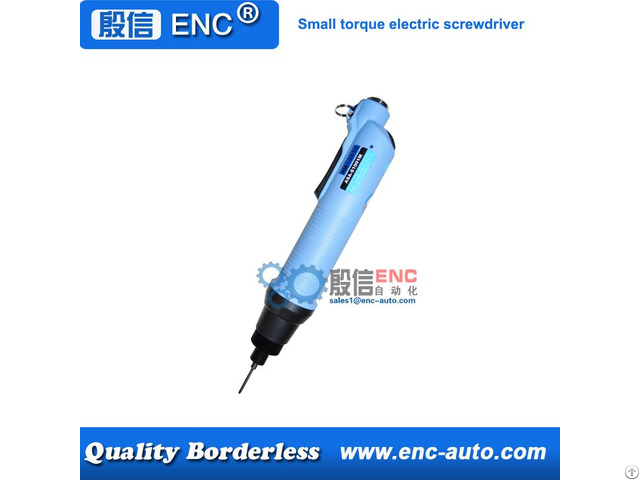

High Precision Low Torque Speed Electric Screwdriver 150rpm 0 015nm - China

Features:

1) This kind high precision low torque speed electric screwdriver is equipped with Switzerland high precision aerospace grade brushless motor, The torque output is stable and high precise, Especially suitable for high precise product, Watches, cellphone, tablet PC etc.

2) Soft start-up and low inertia decrease the looseness rate of screw fastening.

3) Body diameter Ø26mm, overall length 158mm and weight 187g, The most compact electric screwdriver in the world.

4) Torsion range is 0.15~6.0kgf.

cm², low speed and little torque is much appropriate for mini.

screw.

5) Permits continue working for 20, 000 hours(about 10 years) at least, The service life if the contact point withstands 10 million on and off contacts.

6) This electric screwdriver adopts brushless motor, No carbon bust outflow, Which has passed SGS clean room class-10 test.

Can be used in the 5C workshop.

Model and specifications:

Model: ASA-S1000M

Applicable controller: APS-201B

Working vol: 9~30V

Torque range: 0.15~1.0kgf.

cm²

No load speed: 150~300rpm

Applicable screwdriver bits: Ø4, Ø5

Dimension(L*W*H): Ø26*158mm(ASA-S1000M, ASA-S2000M, ASA-S2500M)/Ø36*208mm (ASA-3000M.

ASA-3000MS, ASA-4000M, ASA-4000MS)

Weight: 187g(ASA-S1000M, ASA-S2000M, ASA-S2500M);290g(ASA-3000 M, ASA-3000MS, ASA-4000M, ASA-4000MS)

Applicable thread diameter of machine screw(mm): 1.0~1.8mm

Applicable thread diameter of tapping screw(mm): 0.6~1.4mm

HS code: 8467299000
