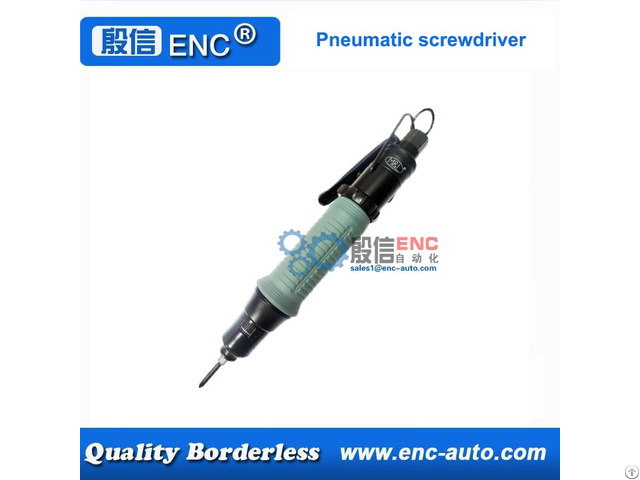

M And L Full Automatic Lever Start Pneumatic Air Screwdriver - China

Features:

1) Adopts the new gecko type rubber handle, long lifetime, comfortable handfeel, nice appearance.

2) Big torque range, adjustable torsion, It outputs 0.5kgf.

cm²Min.

and 280kgf cm²Max., Can also reduce the business cost effectively.

3) Equipped with the patent clutch, The torsion repetition accuracy can reach ±3%, Supply high quality screw fastening.

Model and specifications:

Model: MLQ68LB

Operating air pressure: 6.0kg/cm²

Inner diameter of air pipe: 8.0mm

Torque range: 50~280kgf.

cm²

No load speed: 250rpm

Applicable thread diameter of machine screw: 6.0~11.0mm

Applicable thread diameter of tapping screw: 4.9~8.7mm

Dimension: Ø34*210mm(MLQ10LB~MLQ45L B), Ø42*245mm(MLQ48LB~MLQ68L B)

Weight: 520g(MLQ10LB~MLQ45LB), 820g(MLQ48LB~MLQ60LB), 840g(MLQ65LB, MLQ68LB)

Company Contact:

• Posted By: ENC automatic machine (Shanghai) Co.,Ltd.

• Phone: 18301786646

• Address: Room 1233,Building 2st,No.380,Huihuang road,Jinhui town,Fengxian district, Shanghai , Shanghai , China

• Email:

• Website: http://www.enc-auto.com/en/

• Business Description: ENC Automatic Machine (Shanghai) Co., Ltd. is founded in 2013, Which is committed to the design and manufacture of automatic screwing machine.

  Our product contains of basic handheld screwing machine, single spindle screwing machine, X-Y table screwing machine and complex multi-spindles screwing machine, multi-stations screwing machine, automatic production line.

  Integrated with conveyor, rotation table and robot arm, our company had designed and manufactured many sets automation equipment and make it is possible maximize the efficiency of automation equipment, save more labor cost, enhance productivity.

  Make the screwing is never the bottleneck of industry.

  In recent years, ENC-Auto inputs more and more money and vigor into the research and development of automation equipment, to supply more economic and more accurate equipment to user.

  Up to now, Our equipment had been sold to European and American markets, Asia market and Australian market.

  We are the long-term supplier of many domestic and international famous brand company.
