Pneumatic Hydraulic Jack 60 Ton - China

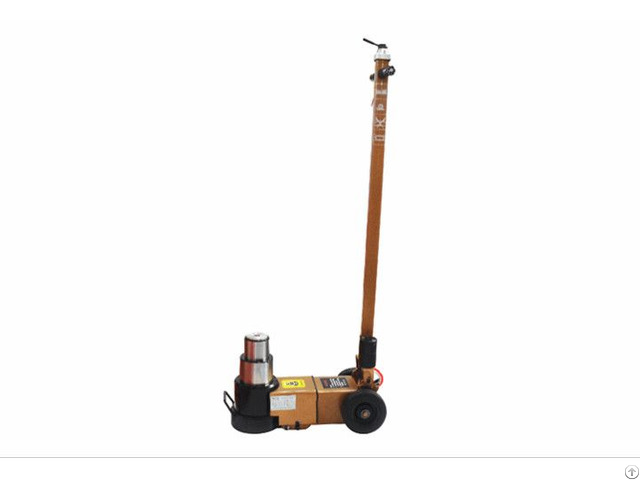

60 ton pneumatic hydraulic jack

This hydraulic jack requires compressed air from an air compressor to lift heavy loads up to 60 Ton.

Can be used for safely lifting, trailers, heavy trucks, buses, construction vehicles and agricultural vehicles.

also easy to operate and are featured with divers safety options as dead man’s joystick which also aids controlled lowering speed.

With a minimum height of just 18.5 cm, almost every lifting point is accessible.

This allows an entire range of vehicles to be jacked up.

Our company export pneumatic hydraulic jack, combi bead breaker, tyre equipment, 80 ton pneumatic hydraulic jack, air hydraulic pump with combi bead breaker and 60 ton pneumatic hydraulic jack.

If you have interested in our products, please feel free to contact us.

• Quality jack with two large rubber wheels and a long handle with soft rubber grips

• First-class powder coating on entire construction, attractive and functional

• Minimum jacking height 21.0 cm and a narrow profile

• Operates with reliable hold-to-run joystick

• Shortcut for quick coupling of the air hose

• The jack can be moved, raised and dropped using the handle

• The handle can be locked in 4 positions; 0 º-45º-90º-180º

• The body has a 620 mm long reach

• Increased load stability with wide base

• The robust chassis is made from 4.5 mm steel plate and provides ultimate protection of the internal parts

• Internal and external hard-chrome cylinders resistant to wear and corrosion

• Each cylinder is fitted with two seals to prevent any oil loss

• Fast lifting by means of pneumatic high-pressure pump

• Hook on the side of the chassis for the extensions

• Screw cap on the chassis for maintaining and repairing .

• Outside oil filling port for easy oil refilling

• Comes with 2 extensions to close gap between the saddle of the jack and the jacking point Lifting Weight: 60 Ton

Working pressure: 0.80-01.20 Mpa

Minimum Height: 210mm

Lifting Height30ton: 195mm, 60ton: 97mm

Extension Rod: 38mm+60mm

Working Pressure: 31.50Mpa

Net Weight: 65Kg Final test

Every air hydraulic floor jack is fully tested at the factory before being packed along with its documentation, ready for shipment! Warranty

The extra low garage jacks are delivered with a one year warranty.

Even after the warranty period expires, the test-department stands ready to assist you with technical support and information Included in your order

• 60ton air hydraulic floor jack with wheels and handle

• CE certificate and instructions for use

• 38mm and 60 mm extension attachments

• Pre-filled with hydraulic fluid

• Packed weight is 74 kg with wooden case, 10 peices of handles with foam in one case, handles case weights 95kg

• Dimensions are L 725 x W 340 x H 330 mm

Company Contact:

• Posted By: ZIJIE TRADING COMPANY

• Phone: 03122174499

• Address: Guangda complex building,Xinshi District, Baoding , Hebei , China

• Email:

• Business Description: We start in this feild in year 2004, supply wide range of of hydraulic and related equipments .

  The production process has been well supervised, and management members have 10 years of work experience in this field.

  Featuring durable quality, competitive price, timely and professional service, get more and more popular in the international markets, such as Germany, USA, Holland, UK, Lebanon, and Iran.

  Our Quality Centre carries out stringent quality control checks on the jack during every stage of the production process.

  The air operated hydraulic jack garage jack was tested at -25 °C to + 45 °C and dynamic and static off-centre load tests were conducted to ensure safety.

  awarded TUV/CE certificate.

  We are Pneumatic Hydraulic Jack, Air Pneumatic Bag Jack China Supplier, welcome!
