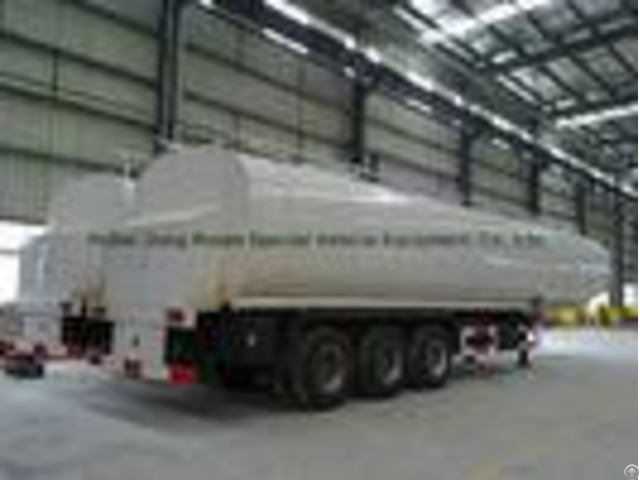

50ton Liquid Asphalt Tanker Semi Trailer With 2tbl45p Baltur Heating And Insulation - China

50Ton liquid Asphalt Tanker Semi-trailer with 2TBL45P BALTUR Heating and Insulation Tank net Capacity: 45000L ~50000L bitumen tanker semitrailer 45cbm with two Burner heater Insulated bitumen tanker trailer 50, 000 liters 3 axle bitumen insulation tank semi-trailer Tank volume: 50, 000 liters Tanker material: Carbon steel-Q235A Tank medium: Bitumen, liquid asphalt, coal tar oil, crude oil No.

of axle: 3 axle BPW or FUWA Heating system: 2 BALTUR TBL45P ITALY burner heating Insulation layer: Rock wool 80mm and outer stainless steel cold plate - - - - Name of Goods | Description of Goods | Quantity | Unit Price | Total | DRZ9406GLQ Bitumen tanker trailer | DRZ9406GLQ Bitumen tanker trailer Three15TFUWA axles, 12R22.5tire, fitted With two diesel burner, one petrol generator, Tank Capacity: 40000L, 50mm rock wood pLuS 50mm PUF Insulation water proof Insulated total 100mm cladding stainless steel | 10units | FOB$27200 | FOB $272000 | Freight cost : | for the shipment and insurance | 10 | $100000 | $100000 | TOTAL amount | Saying: USD dollars only.

| $372000USd CIF TEMA GHANA port | | - - - - Delivery time: 45days after receipt of deposit - - - - Payment terms : T/T.

pay 40% of total value for deposit, and the balance will be paid within 8 days before the shipment.

| | Packing: WAXED for sea transport | | - - - - - - - - Name of Goods | Description of Goods | Quantity | Unit Price | Total | ROAD tank trailer | ROAD tank trailer FOR HOT WAX TRANPORT Three15TFUWA axles, 12R22.5tire, fitted With two diesel burner, one generator, Tank Capacity: 50000L, Insulated by 100mm rock wool, cladding carbon steel | 6units | $31, 600USD | $189, 600USDFOB | Freight cost : | for the shipment and insurance | | | | TOTAL | Saying: USD dollars only.

| $189, 600USD | - - - - - - - - Curb weight | Kg | 12, 800 | Rated loading weight | Kg | 50, 000 | Overall dimension | mm | 13600x2600x3900 | Tank volume | M3 | 50m3, 50000 liters wax tanker trailer | Front/Rear overhang | mm | /900 | Track span | mm | 1310 | Chassis description | | Heavy duty and extra durability designed I beam; Middle Flange 6 or 8mm; Bottom Flange 16mm, width 140mm | Axles | | 3 axle with FUWA brand, axle load: 13, 15 Tonx3 | Suspension type | | Mechanical suspension or air suspension-upon customer's requirement | King pin | Inch | 50mm or 90mm 2 or 3.5 inch Bolt-in King Pin on your requirement | Landing gear | 42 Ton, Two-speed manual, heavy duty landing gear (JOST or FUWA brand-optional) | Leaf of spring | Piece | 9/9/9, or 10/10/10 | Breaking system | | WABCO re 6 relay valve, Spring brake chamber | Electric system | | Voltage 24V, 7 pin socket | Tire specification | | brand tire 12R22.5, Total 12 tires | Tank material | | Q235A carbon steel from WISCO | End plate material | | Q235A carbon steel from WISCO | Rated work Pressure | | 0.2Mpa | Manhole Cover | Set | 500mm manhole cover, 2 set | Outlet discharge Pipe | | 2 unit, 6m | Inlet hole | | 2 unit 500mm inlet hole | Discharge hole | | 2 unit discharge hole | Accessories | Set | A.

One set of spare tire including a carrier, one tool box B.

Ladder: In left and rear position, width>250 C.

Walkway: Width>1500mm D.

Two fire hydrant | Paint | As required; | Heating and insulation system | Insulating layer 1 - Tank containing keep warm by insulation layer 2 - Insulation layer composed of: 100mm rock wool and 1.2mm carbon steel cold plate covered, it can prevent the heat losing.

Heating system 1 - Use Burner heater 24 hours continuous heating at back of the tanker 2 - Two Italian BALTUR oil burner Capacity: 14*104Kcal/h, brand-new 3 - One general-purpose petrol generator 4 - According to continuous diesel burning to keep warm for the WAX (Diesel consumption: 150kg/24hours ) Note: Its not necessary to adopt 24 hours continuous burning, you just only need begin to heat ahead of 4-5 hours while approach the destination site.

It will save oil consumption and cost for you | - - - - Contact Cell 008615271357675 WhatsApp: 8615271357675 tictrucks#gmail.
