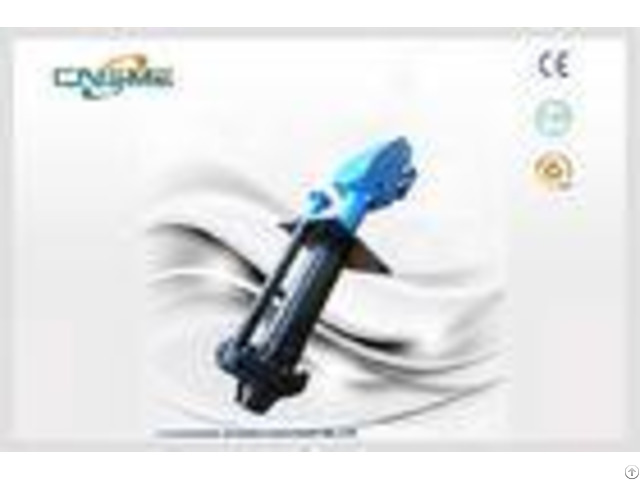

65q Vertical Cantilever Slurry Sump Pump With 1200mm Extended Shaft - China
price: check with company for price
Natural Rubber Sump Pump With Extended Shaft Cantilever Design Introduction: TheSME SV(SVR) Heavy Duty Sump Pumps are available in a wide range of popular sizes to suit most pumping applications.
Thousands of these pumps are proving their reliability and efficiency worldwide in: mining, mineral processing, quarries etc., and they are different from submersible sewage electric pumps.
SP series centrifugal slurry pumps are cantilevered, vertical, centrifugalslurry pumps.
Features: 1 - SP (R) type submerged pumps are vertical centrifugal slurry pump, generally into the pool or pit to work, used to transport abrasive, coarse particle, high concentration slurry.
2 - Don't need any shaft seal and shaft seal water, in the inhaled volume insufficient conditions they can also work normally.
3 - SP (R) type submerged pumps' pump body is made of wear-resisting metal.
Impeller is made of wear-resistant metal or rubber, polyurethane SP (R) type submerged pumps parts into the liquid with rubber lining, they are all applicable to transport corrosive slurry.
Specifications: - - - - Model | SVR-65Q | Capacity | 22.5-105m3/h | TDH | 5.5-30.5m | Rated Motor Power | 30Kw | Speed | 700-1500r/min | Max.
Efficiency | 51% | Standard Shaft Length | 1200mm | - - - - Construction of Vertical Slurry Pump: Materials of Construction: - - - - Part Description | Material | Casing | R55- Black Natural Rubber | Impeller | R55- Black Natural Rubber | Back Liner | R55- Black Natural Rubber | Shaft | Carbon Steel | Mounting Plate | Mild Steel | Strainers | Synthetic Rubber | - - - - Specifications: - - - - Natural Rubber R55 | Standard | Hardness(Shore A) | 523 | 300% Stretching Strength(MPa) | 4 | Tensile Strength(MPa) | 21 | Elongation at Break(%) | 500 | Tensile Set at Break(%) | 25 | Rubber to Metal Bonding Pull Strength(MPa) | 5 | Akron Abrasion cm3/1.61km | 0.08 | Acid & Alkali Resistant PH Value(Liquid) | 3-1265 | - - - - Performance Curve: Projects with Vertical Slurry Pumps:
Company Contact:
- Posted By: Shijiazhuang Minerals Equipment Co. Ltd
- Phone: 86-311-66692398
- Address: 260# West Huaian Road, Shijiazhuang, Hebei, China. 050051, Shijiazhuang , Hebei , China
- Email:
Published date: April 13, 2018
- Business Description: With a complete quality assurance system and strict manufacturing processes, we are here to offer our clients first-class products of super quality with perfect after-sale services.
You are welcome to Shijiazhuang Minerals Equipment Co., Ltd.
