Precision High Frequency Spindles Cnc Mill Spindle Compatible Wwd1686 180000rpm - China

Compatible WWD1686 180, 000RPM KL180B Air Bearing Spindle PCB PRECISION DRILLING Quick Detail : - - - - MODEL | REPLACE FOR | DESCRIPTION | Precision | Machine reference | KL180B | D1686-10 D1686-XX | SPEED RANGE : 20, 000 - 180, 000 rpm 6.35mm-0.05mm precision PCB drilling | Static Runout : <1m Dynamic Runout : <7m Vibration : 1.0MM/S | KLINGINBERG PLURITEC HITACHI LENZ ANDERSON .

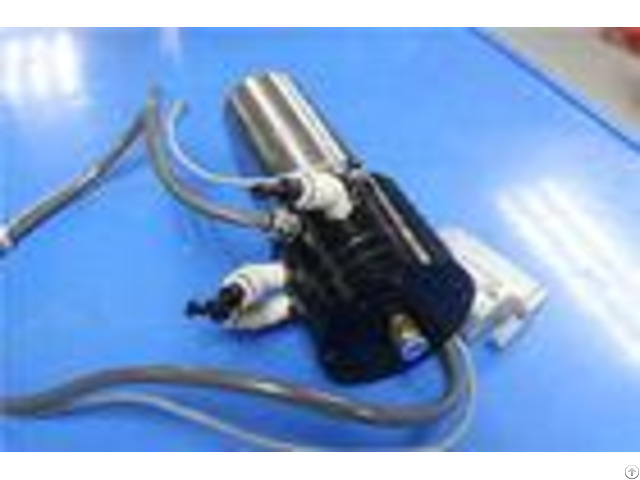

| - - - - PRODUCT DESCRIPTION KL180B high speed rotation and high accuracy spindle replace for WW D1686-10; D1686-XX Full Range from 20, 000 to 160, 000 rpm, air bearing type in long life, spindle weight 3.6kg with COLLET size 1/8 and body size 61.9 Max power : 0.75KW Air Pressure : 6.0 kgf/cm Coolant : Water oil Fixed voltage : 210V Fixed current : 4A FREQUENCY (HZ) : 334-3075 Competitive Advantage : Low Static

Low Dynamic RUN OUT

Stable character and long life

Power and very low heat generation ATC feeder / ATC tool change for micromachining KLKJ Advantage The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.

Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.

KLKJ strong team available allows increased productivity and efficiency.

APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLING

HOLE RANGE : 6.35mm-0.05mm MACHINE REFERENCE : KLINGINBERG PLURITEC HITACHI LENZ ANDERSON .

SPECIFICATION: - - - - Coolant water temperature | 20+2 | Static runout | <2m | Dynamic runout | <8m | Collet torque(N.

cm) | >=120( 1/8) | Vibration | 1.5MM/S | Temperature sensor ohms K | R=0.105% AT 25 | Open air pressure | <4.5 kg/cm | Close air pressure | >2.5 kg/cm | Coolant water flux | >1.5(L/min) | Coolant oil flux | >3.0(L/min) | Air consume flux | 125(L/min) | Radial load | 6.0kgf | - - - - SPINDLE OUTLINE DRAWING Why choose KLKJ? With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.

All spindles at the KLKJ are fully checked and tested using stringent quality control procedures.

KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character: # # Air flow # Water flow # End float/lift off # Axial load (inner) # Axial load (outer) # Torque # Static RUNOUT # Dynamic RUNOUT # Motor check # Vibration # Material analysis & strictly quality test detection control # Stringent tolerance control
