Precision Spindle Thrust Westwind Air Bearings D1686 10 S41666a S41667a - China

precision spindle Thrust Westwind Air Bearings D1686-10 S41666A / S41667A Quick Detail : - - - - MODEL | Version | Name | OEM part No.

| Max Speed | Application | D1686 | -10 | THRUST AIR BEARING | S41666A, S41667A, S41668A | 180, 000 rpm | PCB drilling | - - - - Description : D1686-10 Thrust Westwind Air Bearing of PCB drilling.

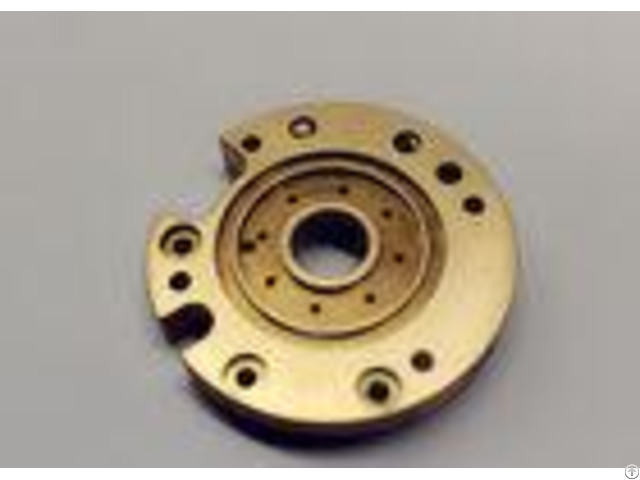

Front bearing, rear bearing and thrust bearing (outer thrust plate) with high precision, high quality, is using for Westwind D1686-10 spindle.

The spindle is suitable for PCB drilling in the Schmoll machine.

180, 000rpm high speed optimizes the spindle performance, to produce high precision hole, or make sure the router edge is fine grade.

Type : Front Bearing, rear bearing, thrust bearing (outer thrust plate) Process : Lathe or cutting, milling, grinding, boring, inspection, etc.

Accessory : Speed sensor ( Can be with or without, only for thrust bearing) Whats air bearing? An air bearing is a non-contacting system where a gas film (typically air) acts as the lubricant that separates the two surfaces in relative motion.

Why use air bearing? There are benefits for air bearing, as follows: l Greater precision l High speed l Increased tool life l Improved surface finish l Long bearing life l Low thermal growth l Lack of maintenance l Large load capacity l Reduced vibration Cleanliness Specifications: - - - - AIR BEARING LIST FOR PCB SPINDLE | MODEL | SPEED (RPM) | APPLICABLE TO | M320-24 | 80K | PCB drilling or routing | M320-64C | 80K | PCB drilling or routing | ABWR80 | 80K | PCB drilling | ABW110 | 110K | PCB drilling | D1331 | 125K | PCB drilling | H912B | 125K | PCB drilling | D1201-21 | 125K | PCB drilling | D1524 | 125K | PCB drilling | H501A(D1264-07) | 125K | PCB drilling | H512A(D1600-01) | 125K | PCB drilling | D1531-09 | 150K | PCB drilling | H516D(D1722-03) | 160K | PCB drilling | H916B | 160K | PCB drilling | H916C | 160K | PCB drilling | D1769-03 | 160K | PCB drilling | D1686 | 180K | PCB drilling | D1780-01 | 180K | PCB drilling | D1787-07A | 200K | PCB drilling | H920B | 200K | PCB drilling | H920A | 200K | PCB drilling | H920E1 | 200K | PCB drilling | D1822-09 | 200K | PCB drilling | D1787-01 | 200K | PCB drilling | UH30AL | 300K | PCB drilling | More than above models can offered please contact us for details.

| - - - - Communication with Customers Cus.

: Do you have D1686 bearings in stock? KLKJ : Yes.

May we know which version of the spindle? Cus.

: I need D1686-10 - KLKJ : In stock now.

Cus.

: Good.

I will send you order by email later.

KLKJ : Thanks.

Do you need speed sensor or not for TB? Cus.

: I check.

KLKJ : OK, please email us after you confirmed.

Cus.

: OK.

KLKJ : Thanks.
