Railway Digital Track Gauge Switch And Superelevation Measuring Device - China

price: 1080.00 Dollar US$

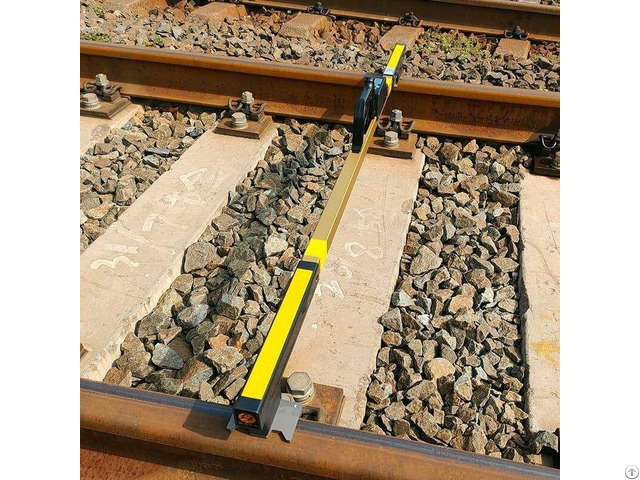

Railway Digital Track Gauge Switch And Superelevation Measuring Device

Products Photos Catalog Railway Digital Track Photos Catalog

Model(1435mm)

GJC-TJG1

Track gauge(mm)

1384-1470

Gauge rail check gauge(mm)

1364-1450

Guard rail face gauge(mm)

1344-1430

Superelevation measuring range(mm)

-200~+200

Flangeway Clearance(mm)

20-107

Superelevation division value(mm)

0.10

Track gauge division value(mm)

0.1

Track gauge max indication error(mm)

±0.25

Superelevation error(mm)

±0.45

Application rail line

railway speed less than 250km/h Digital Track Gauge

Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation, check rail gauge and back to back distance through microelectronics, embedded and sensor technologies and OLED display screen.

FEATURES

1 - Large LED backlit display: especially suitable for day outside and dark night 2 - Quick calibration operation: simple

measurement process 3 - Large capacity battery: long standby time 4 - Accurate measurement: keep long-term stability 5 - Temperature compensation : working temperature is -30~+55℃ 6 - Insulated design 7 - Anti-electromagnetic interference 8 - Waterproof: could use in rainy day 9 - power saving function: no operation within 15 minutes, the system will automatically shut down.

10 - Approval by CHINA ACADEMY OF RAILWAY SCIENCES


Company Contact:


  • Phone: +8615671313697

  • Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China

  • Email: Email


Published date: December 10, 2024

  • Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013 - We are the leading manufacturer for railway equipment which are being used all over the world.

    The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world.
