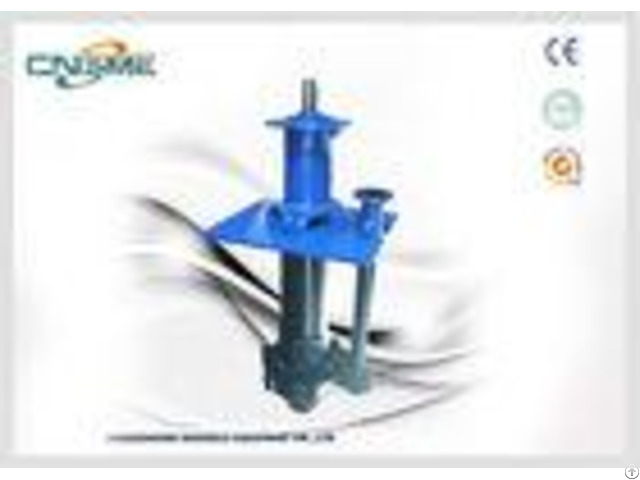

Rubber Lined Slurry Sump Pump Vertical For Corrosive Sludge And Pulp - China

Rubber Lined Slurry Sump Pump Vertical For Corrosive Sludge And Pulp Introduction: Features: Fully Cantilevered Eliminates submerged bearings, packing, lip seals, and mechanical seals that other vertical slurry pumps typically require.

Impellers Unique double suction impellers; fluid flow enters the top as well as the bottom.

This design eliminates shaft seals and reduces thrust load on the bearings.

Large Particle Large particle impellers are also available and enable passing unusually large solids.

Bearing Assembly The maintenance friendly bearing assembly has heavy duty roller bearings, robust housings, and a massive shaft.

Manufacturer and exporter of rubber lined slurry pumps, our product range also comprises of abrasive slurry pumps, chemical process slurry pumps and vertical extended shaft slurry pumps.

Specifications: - - - - Model | 40PV-SP | Capacity | 17.28-39.6m3/h | TDH | 4-26m | Rated Motor Power | 15Kw | Speed | 1000-2200r/min | Max.

Efficiency | 40% | Standard Shaft Length | 900mm | - - - - Materials of Construction: - - - - Part Description | Material | Casing | R55- Black Natural Rubber | Impeller | R55- Black Natural Rubber | Back Liner | R55- Black Natural Rubber | Shaft | Carbon Steel | Mounting Plate | Mild Steel | Strainers | Synthetic Rubber | - - - - Specifications: - - - - Natural Rubber R55 | Standard | Hardness(Shore A) | 523 | 300% Stretching Strength(MPa) | 4 | Tensile Strength(MPa) | 21 | Elongation at Break(%) | 500 | Tensile Set at Break(%) | 25 | Rubber to Metal Bonding Pull Strength(MPa) | 5 | Akron Abrasion cm3/1.61km | 0.08 | Acid & Alkali Resistant PH Value(Liquid) | 3-1265 | - - - - Construction of Vertical Slurry Pump: Serial Number Parts Name Serial Number Parts Name 1 SHAFT 9 BACK LINER 2 BEARING 10 IMPELLER 3 BEARING HOUSING 11 PUMP CASING 4 BEARING SPACER 12 LOWER STRAINER 5 BEAIRING 13 DISCHARGE PIPE 6 SHIM 14 FLUSHING PIPE 7 COLUMN 15 COUPLING PART 8 STRAINER 16 MIDDLE SUPPORT PART Performance Curve: - - - - Type | Size | Frame | Impeller: SVR4206R55 | Shaft Seal | Frame Rating(kw) | Normal Max Speed(r/min) | Max Passage Size(mm) | SPR | 40 | P | 5 Open Type Rubber Vans, Diameter: 195mm | Gland Packing, Expeller, Mechanical Seal | 15 | 2200 | 12 | - - - - - - - - SVR Series Vertical Rubber Sump Pump Specifations & Prices | | | | | Pump Model | SD (mm) | Allowable Max.

Power (kw) | Material | Clear Water Performance | Impeller | Pricing | Capacity Q | Head H(m) | Speed n(r/min) | Max.

Eff.

% | Length Shaft (mm) | No.

of Vanes | Vane Dia.

(mm) | Weight (kg) | Impeller | m3/h | l/s | SVR/40P | 8040 | 15 | Rubber (R55) | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 900 | 5 | 195 | 275 | SVR/65Q | 12065 | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 1200 | 290 | 420 | SVR/100R | 175100 | 75 | 54-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 1500 | 390 | 850 | SVR/150S | 240150 | 110 | 72-504 | 20-140 | 10-35 | 500-1000 | 56 | 1800 | 480 | 1720 | - - - - Projects with Vertical Slurry Pumps:
