Westwind Wwd1822 200000rpm Water Cooled Cnc Spindle Motor For Hitachi Lenz Machine - China

Compatible WESTWIND WWD1822 200, 000RPM KL200L Air Bearing Spindle PCB PRECISION DRILLING Quick Detail : - - - - MODEL | REPLACE FOR | DESCRIPTION | Application | Machine reference | KL200L | D1822 | SPEED RANGE : 20, 000 - 200, 000 rpm 6.35mm-0.05mm precision drilling | Static Run Out : <2m Dynamic Run Out : <8m Vibration : 0.5 MM/S | KLINGINBERG PLURITEC HITACHI LENZ SCHMOLL ANDERSON .

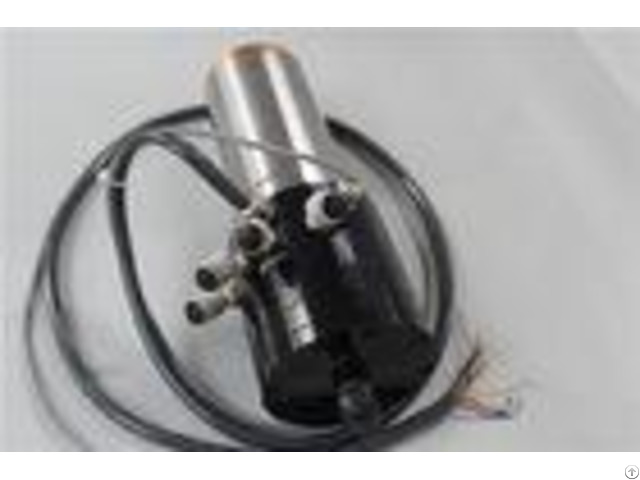

| - - - - PRODUCT DESCRIPTION KL200L higher speed rotation and higher accuracy spindle replace for WESTWIND WW D1822 Full Range from 20, 000 to 200, 000 rpm, air bearing type in long life, spindle weight 4.3kg with COLLET size 1/8 and body size 61.9.

' Max power : 0.9KW Air Pressure : 6.0 -6.5kgf/cm Coolant : Water oil Fixed voltage : 215V Fixed current : 4A FREQUENCY (HZ) : 334-3570 PTC Or NTC SENSOR For choose (Data pl.

inquiry) Competitive Advantage : Low Static Low Dynamic RUN OUT Stable character and long life Power and very low heat generation ATC feeder / ATC tool change for micromachining KLKJ Advantage The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.

Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.

APPLICATION : PRINT CIRCUIT BOARD PRECISION DRILLING HOLE RANGE: 6.35mm-0.05mm MACHINE REFERENCE: KLINGINBERG PLURITEC HITACHI LENZ ANDERSON;SCHMOLL .

SPECIFICATION : - - - - Coolant water temperature | 20+2 | Static runout | <2m | Dynamic runout | <8m | Collet torque(N.

cm) | >15.2( 1/8) | Vibration | 0.5MM/S | Temperature sensor ohms K | R=0.105% AT 25 | Open air pressure | <5.0kg/cm | Close air pressure | >2.5 kg/cm | Coolant water flux | >0.8(L/min) | Coolant oil flux | >1.5(L/min) | Air consume flux at 20krpm | 58(L/min) | Radial load | 6.0kgf | - - - - Spindleoutlinedrawing Spindle Quality and Service Comment from customer
