2tmedium Frequency Induction Steel Melting Furnace - China

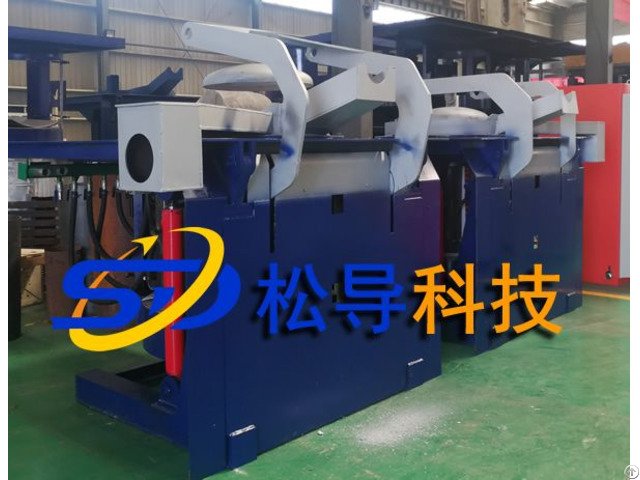

2Tmedium frequency induction steel melting furnace

First, the melting furnace type:

The melting furnace is a power-saving product, advanced technology, precise and reliable control, mature manufacturing process, safe and stable operation, perfect protection system, reasonable layout, convenient management and maintenance.

It has the characteristics of fast melting speed, low energy consumption and stable and reliable operation.

Second, the melting furnace composition range:

Medium frequency power supply → capacitor cabinet → furnace body (steel shell or aluminum shell furnace body) → tilting furnace system → remote control box → closed loop cooling tower

The melting furnace has protection systems such as overvoltage, overcurrent, water temperature, water pressure, short circuit, grounding, etc.

The operation panel has various parameters of the working parameter display screen and the display working state, and there are indications such as fault and temperature.

Third, 2T melting furnace technical parameters

power supply Working form: single power supply 6 pulses or dual power supply 12 pulses Rectified form: 3- phase 6- pulse or 6- phase 12- pulse Output power: 1000 KW or 1800 KW, different power prices.

Power efficiency ≥98% Start mode: sweep soft start Startup rate: 100% (including heavy load) Rated frequency: 500KHZ-1000KHZ AC voltage: 400 V, 575v, 660v DC voltage: 500V, 776V, 900V, 1350v IF voltage: 1500V, 2400V, 2700V DC current: 2000 A Input frequency: 50Hz Circulating water volume: integrated layered water cooling tower ZXZ-120T (40/80)

Furnace body Rated capacity: 2 000KG Maximum capacity: 2 300KG Power factor: ≥ 0.9 2 Melting time : about 60 minutes / furnace Working temperature: 155 0°C -170 0°C Loading diameter: 620 mm (upper mouth) inner diameter of the ring: 820mm copper ring of the furnace is 30x50x6mm Steel: turndown maximum angle: 95 ° Aluminum Shell: turndown maximum angle: 180 ° Outlet mode: side outlet or rear outlet Circulating water volume: integrated layered water cooling tower ZXZ-120T (40/80) Tilting method: aluminum shell 631 reducer, steel shellhydraulic Unit power consumption: ≤ 60 0 degrees / T ± 5% 1550 ° C

transformer Rated capacity: 1250 KVA Primary voltage: 10KV Secondary voltage: 400 V, 575, 660v One phase: 3 phase Secondary phase number: /3 phase 6 pulse, 6 phase 12 pulse Output form: three △ three Y

Cooling water

system One-piece layered water cooling tower ZXZ- 120 T(40/ 80 ) Cooling capacity : 6 00000 kcal / h Cooling water volume : 120 m3/h Fan power : 1.1 KW × 4 units Fan air volume 16800 m3/h × 4 spray pump 120m3/h; 4.4 kw

Dimensions mm 32 00× 178 0×3490 (one size)

Fourth, the melting furnace configuration table

Serial number Name Quantity Remarks

1 IF power cabinet 1 set

2 Furnace body 1 set Steel shell, yoke, 3 Hydraulic system or reducer 1 set Hydraulic power station

4 External console 1 set External control power adjustment for tilting furnace

5 Water cooled cable 1 set 2 roots

6 Model 1 ≥ 3 mm steel plate

7 Rectifier transformer 1 set Optional

8 PLC automatic control display system 1 set Optional

9 Closed loop cooling tower 1 set Optional

10 Rectifier thyristor 2 sets spare

11 Inverter thyristor 2 sets spare
