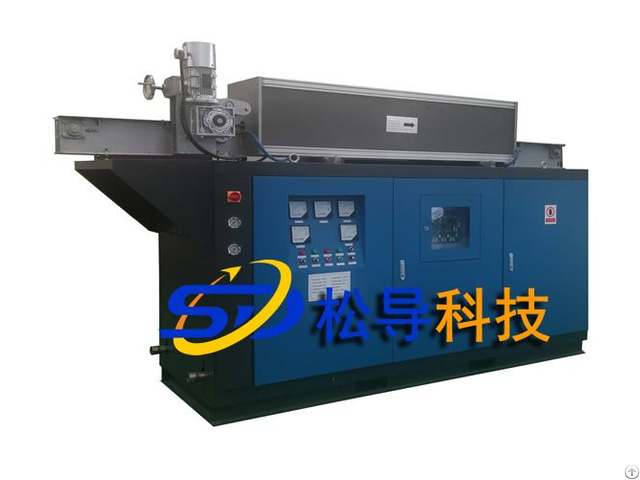

Bar Round Forging Frequency Induction Heating Furnace - China

1 - Overview

Fully automatic medium frequency induction heating complete equipment with vibration sequencing, idler feeding, automatic temperature control and three-level temperature control

This set of equipment is mainly used for the overall heat transfer of round steel and steel pipes .

The heating furnace body adopts the quick replacement method, and only the furnace body needs to be replaced when the product specifications are replaced.

It takes only a few minutes to replace the furnace

2, according to the maximum weight of a single piece, the heating time to calculate the power

3, Device range and function description:

1 - Equipment range is shown in the table below

Serial number content Quantity Remarks

1 Rectifier transformer 1 set Optional user purchase

2 Thyristor series inverter IF power supply 1 set

3 Induction heater 1 set Includes water cooled rails 3.1 GTR 80 (applicable material φ 75 ) 1 set

4 Induction heating furnace stand 1 set

5 Feeding platform and buffer chain conveyor 1 set

6 Feeder 1 set

7 Roller feeder 1 set

8 Pinch roller feeder 1 set

9 Material return device 1 set Return steel cylinder, loading machine

10 Quick discharge machine 1 set

11 Three sorting machines 1 set

12 Temperature control system (infrared temperature measurement and control instrument) 1 set PLC center console 12 .

1 PLC center console 1 set 12 .

2 Industrial control software

(MCGS system) 1 set 12 .

3 Programmable Controllers 1 set 12 .

4 LCD screen 1 set 12 .

5 Double colorimetric infrared thermometer (Xi'an Ruiguang) 1 set 12 .

6 Photoelectric alarm switch 1 set 12 .

7 Control cabinet 1 set 12 .

8 Console 1 set

10 Cooling water system 1 set User-purchased
