F16hp Elbow Hydraulic Hose Crimping Machine Feature Description - China
price: 1000.00 Dollar US$

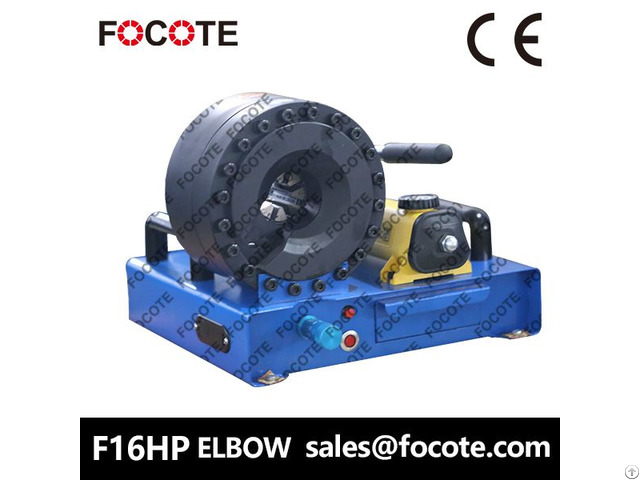

F16HP ELBOW Hydraulic Hose Crimping Machine
Feature description： ●1" Bent Fitting
● No electricity required
● Enerpac Hand Pump ● Complete Die Set Specification：
Main Specification F16HP
Max Hydraulic Hose 1’’3 wire 90 Degree Fitting
Crimping Range mm 4-45
Die Type P16
Master Die Length mm 64
Max Opening mm +20
Hand Pump Enerpac two stage pump 700 bar
Crimping Force KN 1000
Control Micro Dail L*W*H mm 330*400*280
Weight KG 25
Standard Die Sets Included：
Die No.
10 12 14 16 19 23 27 31
Length 55 55 55 55 55 55 65 65
Order No.
Hand Pump Model P16HP ELBOW : 00001840
Pneumatic Pump Model P16AP ELBOW : 00001841 F16HP ELBOW Hydraulic Hose Crimping Machine
Company Contact:
- Posted By: FOCOTE WUXI CO.,LTD
- Phone: 13485066666
- Address: FuRong Road, Wuxi , Jiangsu , China
- Email:
Published date: August 13, 2019
- Business Description: Our company mainly produces all kinds of hydraulic hose Crimping Machine in different type,hydraulic hose cutting machine, hydraulic hose cleaning machine, hydraulic hose fittings installed machine, carving machine, hydraulic hose joint industrial connectors hydraulic hose support, hydraulic tube rotary table, hydraulic hose cutting automatic production line etc.
