Fcm75 4 Inch Hose Cutting Machine - China
price: 1000.00 Dollar US$

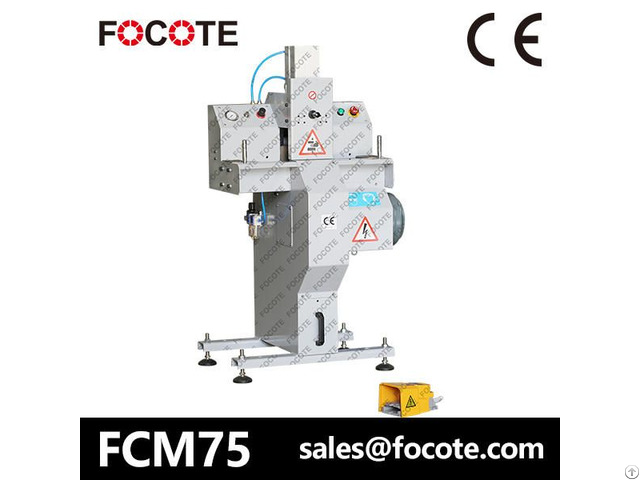

FCM75 4" Cutting Machine
PRECISE AND ADJUSTABLE CUTTING
1) With standard dies.
Crimping range can beincreased with special dies.
2) Theoretical with 10 mm cycle.
Control● 2'' 6 wire or 4'' Industrail Hose FCM75 cutting machine can be easily adjusted to choose optimal cutting speed for every hose.
FCM75 hose-cutting machine have been designed to cut up all types of hoses up to 2”diameter 6-spiral hoses or 4‘’ Industrial Hose.
The 520 mm diameter blades operate at 3000 rpm.
The hose is pushed against the blade by a pneumatic cylinder.
Piston movement speed can be quickly and easily adjusted to choose optimal cutting speed for every hose.
Lower speeds are used with thick hoses thus overheating of the blade is avoided.
The blade can be sharpened when necessary.
The cutter has a built-in bin for the collection of cutting waste.
A metal safety guard protects the blade.
Specification：
Main Specification FCM75
Hydraulic Hose 2 inch 6 wire
Industrial Hose 4”
Motor 5.5KW
Cutting Pneumatic
Blade 520mm*4mm
Cutting Speed Adjustable
Cutting Pressure Adjustable
Foot Pedal Included
Blade Toothed Optional
Brake Motor Optional
Servo controlled feeder Optional
L*W*H mm 910*650*1400 mm
Weight KG 255
Company Contact:
- Posted By: FOCOTE WUXI CO.,LTD
- Phone: 13485066666
- Address: FuRong Road, Wuxi , Jiangsu , China
- Email:
Published date: August 13, 2019
- Business Description: Our company mainly produces all kinds of hydraulic hose Crimping Machine in different type,hydraulic hose cutting machine, hydraulic hose cleaning machine, hydraulic hose fittings installed machine, carving machine, hydraulic hose joint industrial connectors hydraulic hose support, hydraulic tube rotary table, hydraulic hose cutting automatic production line etc.
