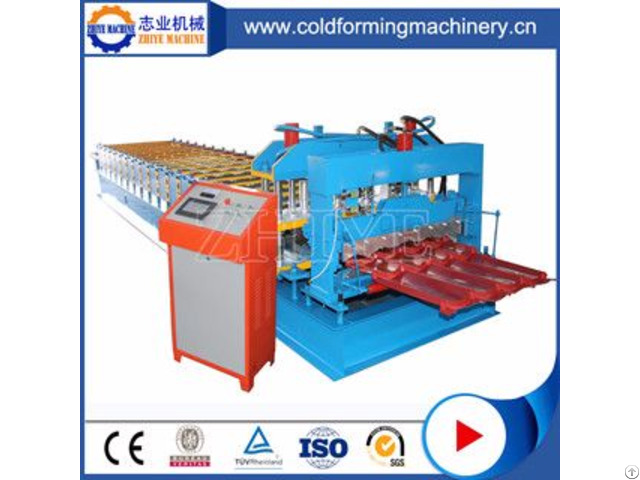

High Quality Zinc Glazed Tile Machine Zhiye - China

The Glazed tile produced by this kind of machine are looked beautiful, elegant and noble.

It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on.

Features of this producing line:

lower cost

high efficiency

reliable working low energy consumption

It consists of Manual Uncoiler, Feeding Table, Main Roll Forming Machine, Hydraulic System, Shearing Mechanism, Computer Control Cabinet .

1 - Manual Uncoiler:

Usage: It is used to support the steel coil and uncoil it in a turnable way.

The steel coil is uncoiled by hand.

Loading capacity: 5T

Inner diameter: 500-508mm

2 - Feeding Table:

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat.

Parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

chargein width: 1200mm Thickness of coil sheet: 0.4---0.8mm

3 - Main Roll Forming Machine:

Material of rollers: 45# steel, roller surfaces polishing, hard plating.

The polished surface and the heat treatment towards the molds also can keep the molding.

Plate surface smooth and not easy to be marked when it is being stamped Main motor power: 4kw Forming speed: 8--10m/min

4 - Hydraulic System:

Hydraulic oil: 40#.

Hydraulic station power: 3kw

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

5 - Shearing Mechanism: It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment.

6 - Computer Control Cabinet: The target piece`s length is adjustable and digit of it can be adjusted.

Computed mode has two modes: automatic and manual one.

The system is easy to operate and use.

PLC: EURA
