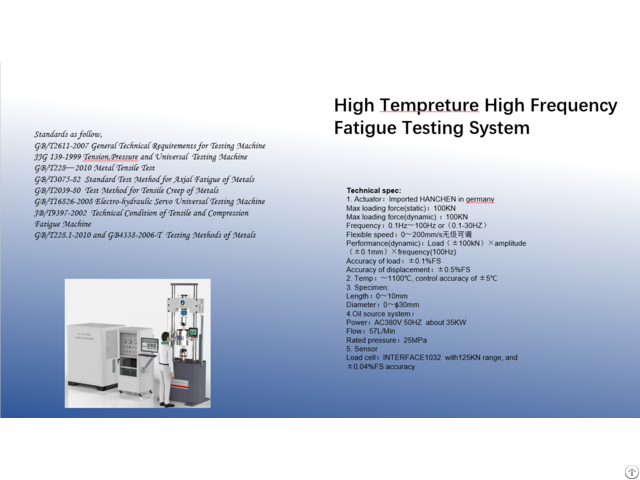

High Tempreture And Frequency Fatigue Testing System - China

Functions as follow:

1 - The testing machine is equipped with 100KN axial actuator, which can complete the uniaxial tensile, compression and fatigue testing of materials.

2 - The machine is configurate with high temperature heating box, which can complete the fatigue testing uner 1100 ℃.

3 - Adopt of imported load cell, displacement and deform extensometer, which would control the data of testing force, confining pressure, specimens deformation automatically and precisely.

Such as:

a) constant stress, constant displacement, constant deformation.

b) speed of constant stress, constant displacement, constant deformation.

c) rate control of stress, displacement, deformation.

d) loading and unloading in circulation.

4 - The testing machine adopts high performance electro-hydraulic servo proportional valve set with wide speed and digital controlling with full digital closed-loop speed regulation control system, smoothly (no impact) conversion among force (stress), displacement and deformation (strain).

5 - Safety protections:

a) electric system: over voltage, over current, over heating.

b) measuring and controlling system: force, displacement, deformation.

c) hydraulic system: pressure, oil temp, oil-way blocking.

d) high temp system: ultralimit of high temp

e) deformation and time pre-setting, limit of deform.

f) protection of specimens rupture

6 - The software of testing is working under windows with strong data processing, automatically save, display and printing.
