High Wear Conveyor Plastic Rollerssmall Power Consumption For Fertilizer Industry - China

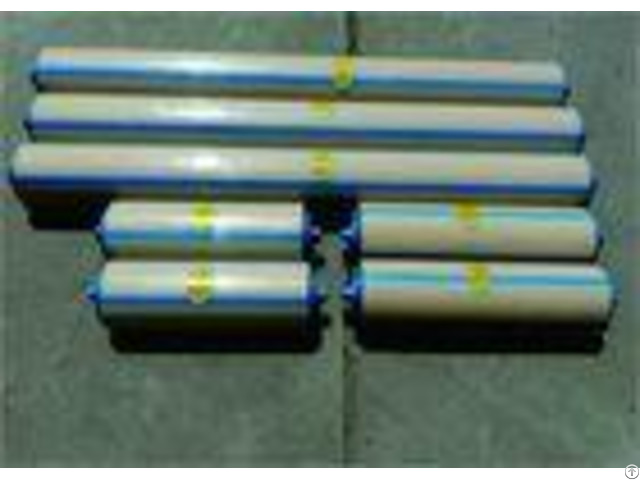

Small Power Consumption Nylon Conveyor Roller Applied in Fertiliazer Plant Nylon rollers are light weight, dustproof, corrosion resistant and self-lubricating and widely used on belt conveyors for various industries.

They greatly outperform other rollers when applied in the factories of chemical, cement, sintering, power and coal mines, where dust is heavy and corrosively is high.

Conveyor roller, important component of belt conveyor, is used to effectively support belt and bulk material of conveyor.

Conveyor roller consists of tube, shaft, bearing, housing, seals.

According to China national standards, diameter are 76, 89, 108, 133, 159 etc.

Hongda Nylonconveyor roller is of unique structure, reasonable fitting and accurate assembly, resulting in high capacity and long service life.

What Is the Differences BetweenHongda Rollers and Other Rollers Structure Unique design of roller body, two sealed covers in ends are out of tube, which effectively prevents water in.

labyrinthine dust-proof design sets layers of defence, which prevents the dust from entering the heart of roller -- bearing.

More components of the roller are treated by special technique, less maintenance is needed during working processing.

Material After analysis of mechanical properties and physical properties of various plastics, and after practice and test, Hongda finally chooses NYLON, PP(Polypropylene), HMWPE (High Molecular Weight Polyethylene) as the main material to produce the parts of roller by modification or single way.

The parts' work are aligned well in variety of environments.

Technical Parameter Outside diameter run out of roller: 0.5-0.7 mm Revolving resistance of roller: 3.3-3.5 N The axial movement distance of the roller between the frame is less than 3 mm Applied in temperature: 80 Specifications Diameter: 89-159mm; Tube width: 190-1800 mm.

- - - - Specification of Belt Conveyor | Carrying Roller (Equal Troughing Idler)(mm) | Return Roller(mm) | B-500 | 89(108)190 | 89(108)600 | B-650 | 89(108)240 | 89(108)750 | B-800 | 89(108)305 | 89(108)950 | B-1000 | 89(133)375 | 89(108)1150 | B-1200 | 89(133)455 | 89(108)1400 | B-1400 | 89(133)525 | 89(108)1600 | B-1600 | 89(133)595 | 89(108)1800 | We also make customized impact rollers and other sizes plastic rollers as your requests.

| - - - - Features 1 - Long Service Life -Our plastic roller is strived for perfection while choosing and processing the raw materials, and it is corrosion resistant, dustproof and waterproof and under equal conditions, the service time of the roller is 2-3 times longer than that of common rollers.

2 - Energy Saving -The weight of the plastic roller is around one seventh of that of metal roller.

It consumes less electricity than other heavier rollers.

A 50-meter long conveyor belt that uses our plastic rollers, for instance, can save electricity fare worth 3, 000 to 30, 000 RMB annually.

3 - Capable of Extending the Life Span of the Conveyor Belt- The plastic roller has low friction coefficient, excellent self-lubricating property and a smooth surface.

Even if one roller breaks down, it won't pull, tear or damage the expensive conveyor belt and therefore can extend the life span of the belt.

4 - Easy Installation- Plastic roller is light and therefore can be easily installed by just one person.

Also it usually needs no maintenance as it has a low damage rate.
