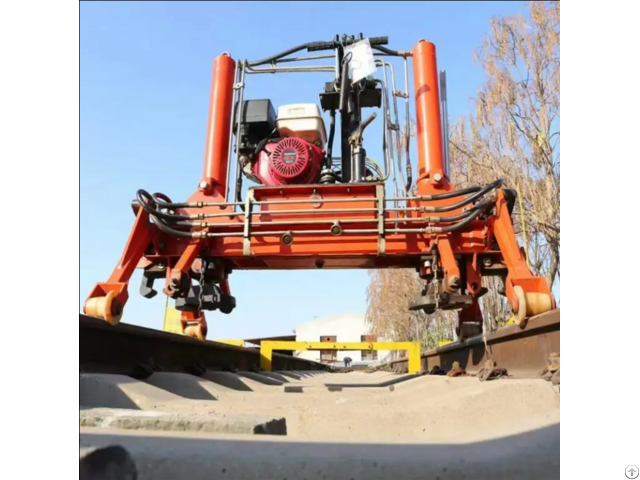

Hydraulic Railway Track Lifting And Lining Machine - China

price: 250.00 Dollar US$

YQBJ-300*130 Railway Track Lifting and Lining Machine This product has the fuction of lifting and lining.

Its structure is simple, light, flexible, safe and reliable.

This machine is

powered by Honda GX390 petrol engine, drives gear pump, and controls the work of each cylinder by multi-way reversing, valve, so as to realize the movement of machine in place, hook rail, tilt and lift.

PRODUCT SPECIFICATIONS

Model

YQBJ-300*130

Type

Railway Track Lifting and Lining Machine

Material

Stainless Steel

Dimensions (L x W x H) (mm)

1760*900*1500 mm

Engine

Honda GX390, 6.6 kW

Max.

lifting force

150 kNx2

Max.

lining force

130 kN

Max.

lifting stroke

1020 mm

Max.

lining stroke

≥310mm/time

System pressure

20 MPa

Operation handle working force

≤200N

Weight

550 kg


Company Contact:


  • Phone: +8615671313697

  • Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China

  • Email: Email


Published date: October 23, 2024

  • Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013 - We are the leading manufacturer for railway equipment which are being used all over the world.

    The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world.
