Troughing Steel Industrial Conveyor Rollers Carrying Roller With Long Service Life - China

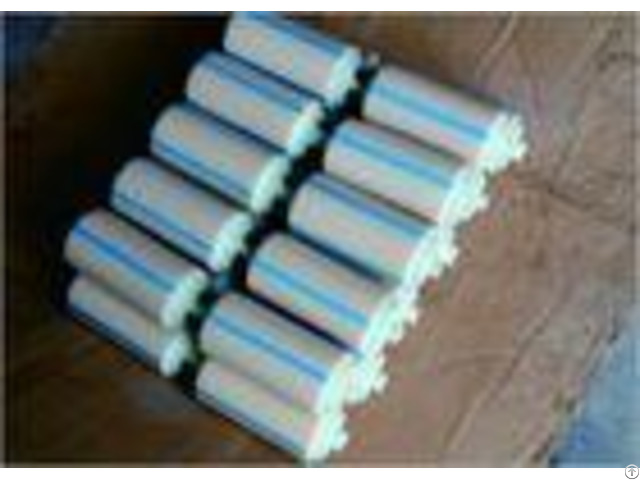

Troughing Carrying Idler Roller with Long Service Life and blue belt on tube Applied in Steel Industry We can manufacture the rollersof diameter 89-219mm length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc.

and we have Passed CE certification and ISO9001: 2000 certificate.

Troughing Carrying Idlers are used for conveying bulk materials.

Usually three rollers in one group are installed on one set.

They are designed and manufactured with troughing angles of 20, 35, 45 - Training Problem Conveyors Fig.

1 Fig.

2 Fig.

3 Fig.

1 # # "Straight" (over 90) This stand has no tilt, and is designed for the conveyor belts to run in both directions.

It has no real assist in belt tracking.

# "Tilted" (2) In the direction of belt travel.

Conveyor belts are to run in this direction only.

The 2 tilt offers good results in conveyor belt tracking.

Fig.

2 Straight stands can be tilted 2 forward by placing a 1/8" thick washer under the back side of idler stand indicated by arrows.

Remember, this conveyor only runs in one direction.

Many times on reversing conveyors, the belt runs great in one direction, only to run off when reversed.

Question? What are you using? If you are using tilted stands, they are good for one direction only.

On reversing conveyors where tilted stands are already in service and giving problems, you can neutralize the tilt by placing a 1/8" thick washer under the front side of the idler stand opposite the side indicated by arrows.

Now with the tilted stands neutralized, you can run your conveyor belt either direction.

Fig.

3 The only part of the troughing idler that has any training effect on the conveyor belt is the center roll indicated by the arrow.

Re-read this statement.

Specifications Diameter: 89-159mm; Tube width: 190-1800 mm.

- - - - Specification of Belt Conveyor | Carrying Roller (Equal Troughing Idler)(mm) | Return Roller(mm) | B-500 | 89(108)190 | 89(108)600 | B-650 | 89(108)240 | 89(108)750 | B-800 | 89(108)305 | 89(108)950 | B-1000 | 89(133)375 | 89(108)1150 | B-1200 | 89(133)455 | 89(108)1400 | B-1400 | 89(133)525 | 89(108)1600 | B-1600 | 89(133)595 | 89(108)1800 | We also make customized impact rollers and other sizes plastic rollers as your requests.

| - - - - Technical Parameter Outside diameter run out of roller: 0.5-0.7 mm Revolving resistance of roller: 3.3-3.5 N The axial movement distance of the roller between the frame is less than 3 mm Applied in temperature: 80 Hongda's Commitment Hongda plastic roller's service life is 2 - 3 times than other else's under the same conditions and working atmosphere.

Application
