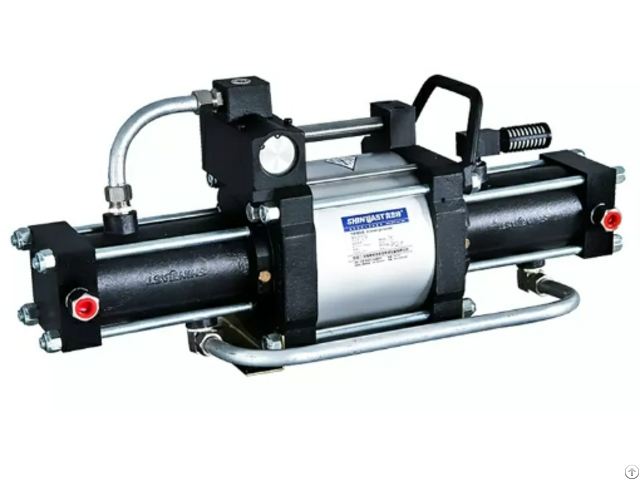

Gas Pressure Booster For Cylinder Transfer And Filling Made In China - China
price: 500.00 Dollar US$
Air gas high pressure pumps for gas applications, up to 1400 bar (20, 300 psi) STD series Features:
1 - Diameter of drive plunger is 160mm
2 - Double acting
3 - Single air drive head
4 - For operating pressure up to 1400 bar (20, 300 psi)
5 - They are characterized by the same features as the STA series, and should be pressurized at inlet port so as to obtain required outlet pressure, which will be variable for different requirement.
6 - STD pumps are available with high quality seals, which provide significantly better service life as well.
7 - Double pump heads with exhaust cooling devices.
8 - Provide for air drive pressures up to 10 bar (145psi).
Suggest be not above 8 bar so as to protect pumps for long life durability.
9 - All components in contact with the gas are made of aluminium or stainless steel.
10 - Pipes mounting way are available as customized.
Key features include:
- Compressed Air driven - no electricity required (connect to normal air compressor)
- In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar
- No airline lubricator required
- Hydrocarbon free - separation between air and gas sections
- Easy to install, operate and maintain
- Best price / performance ratio
- No heat, flame or spark risk and explosion proof
- Automatic pressure holding, whatever the cause of the pressure drop, the Shineeast pump will automatically start, keep the loop pressure constant Applications for Air Driven Gas Boosters Shineeast Air Driven Gas Boosters provide for pressures up to 80Mpa.
Applications:
- Pressure test with gas/air
- Gas transfer and filling (Air / Argon / Helium / Hydrogen / Oxygen / Nitrogen / CO2 / NO2 / CH4 / LNG / LPG / CNG / FM200 etc.
- Charging of gas cylinder and accumulator with nitrogen
- Nitrogen gas spring charging
- Supply for isolating gas systems
- Gas assisted injection molding
- Transfer of oxygen cylinders
- Charging of breathing air bottles
- Leak test
- Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
- Safety valve adjusting
- MOQ: 1 Set
- Brand Name: Shineeast
- Certificate: ISO/CE/SGS
- Warranty: 13 Months
- Packaging: by Plywood case or carton box
- Shipping Port: Qingdao
- Payment: T/T, Credit card, PayPal
- Transaction method: EXW, FCA, FOB, CIF, DAP, DDP
- Place of Origin: Shandong Province, China (Mainland)
- Delivery Time: Within 5-7 working days after received deposit.
Company Contact:
- Phone: +8619725317716
- Address: China-Europe Intelligent Port, Industrial Development Park, Gaoguanzhai Town, Zhangqiu District, Jin, Jinan , Shandong , China
- Email:
- Website: https://www.sdshineeast.com/
Published date: August 30, 2024 - Modified date: August 30, 2024
- Business Description: Shandong Shineeast Fluid Control Systems Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids.
In addition to offering a comprehensive range of air driven liquid pumps, air pressure boosters, air driven gas boosters, high pressure valves, fittings and accessories, pneumatic power packs and hydraulic presses, pressure test machines, valve and pipe fittings test equipment, finishing pumps and related equipment, gas cylinder test equipment and the oil and gas field special controls and test equipment, we customize and build pneumatic power packs and test equipment.
Our main manufacturing locations are fully registered to ISO9001 and CE.
Our products are widely used in industry, machine tool industry, diesel engine industry, aerospace industry, automobile manufacturing, household electrical appliances, industrial electronics industry, shipbuilding industry, petrochemical industry, oil and gas field, CNG vehicle conversion industry, pressure test industry and other fields.
Shineeast also has a strong commitment to providing you with high quality products as well as excellent service and technical support; and we have built an enviable reputation for quality in the world market.
This helps to keep Shineeast as the best choice for all of your high pressure requirements.
We are here to solve your problems.
Please contact us to discuss your requirements or visit our website at www.
sdshineeast.
com for more information.
