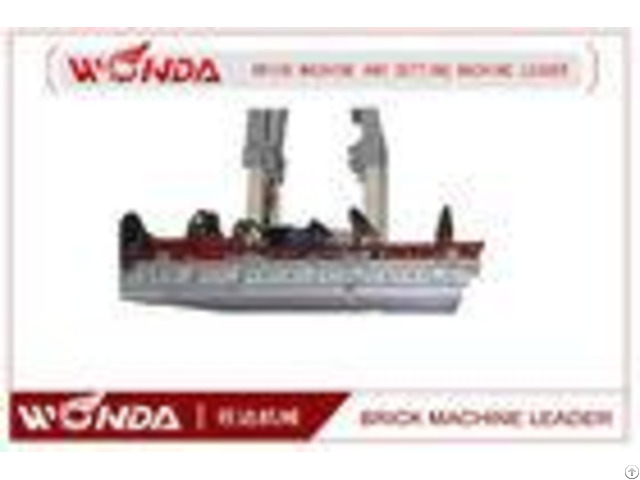

Hydraulic Pressure Brick Stacking Machine High Strength Industrial Aluminum Body - China

Hydraulic Pressure Brick Setting Machine Adopted Made-to-order High Strength Industrial Aluminum Production Introduce Hydraulic Pressure Brick Setting Machine Adopted Made-to-order High Strength Industrial Aluminum, block setting machine is mainly used with JK Double Stage Vacuum Extruder which draw lesson from the developed domestic, abroad experiences and design to make clay vacuum bricks.

It is mainly made of high quality steel with features of reasonable structure, sturdy and durability.

And they have strong applicability, high efficiency, easy maintenance but lower energy consumption.

Specification of Brick Setting machine: - applies to brick stacking in the once or twice firing tunnel kiln - controlled by the electricity and hydraulic lift - energy saving - efficiency - easy maintenance - low cost and stable operation.

The parts of automatic brick setting machine: * moving trestle * clamp plate * separator * lifting guide pillar * rail * hydraulic system * electrical system Technical Parameters - - - - Condition | New | Type | Hollow Block Making Machine | Brick Raw Material | Clay | Processing | Brick Production Line | Method | Hydraulic Pressure | Automatic | Yes | Capacity | 30.000.000 pcs/year | Place of Origin | Henan, China (Mainland) | Brand Name | Wangda | Model Number | ZMP | Voltage | 300V | Power | 26.6kw | Dimension(L*W*H) | as you need | Certification | ISO9001 | Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas | Color | as you need | Production | 30-120 million pcs/year | Quality | Reliable | Performance | Perfect | Technology | Advanced | Work range | Brick factory | After-sale service | Lifetime | Exported | Over 15 countries | Body of machine | All steel | Factory | Professional Manufacturer | - - - - - - - - Model | Capacity(pcs/h) | Power(KW) | Extrusion pressure(MPa | Vacuum degree(%) | JK70/65-38 | 18000-22000 | Upper95 bottom220 | 3.8 | 92 | JK65/60-38 | 12000-15000 | 75 132 | 3.8 | 92 | JK55/55-30 | 12000-16000 | 75 150 | 3.0 | 92 | JK55/50-30 | 12000-14000 | 55 132 | 3.0 | 92 | JK45/45-20 | 10000-13000 | 45 90 | 2.0 | 92 | JK45/40-20 | 10000-12000 | 45 90 | 2.0 | 92 | JK40/40-15 | 8000-12000 | 30 90 | 1.5 | 92 | - - - - Details The machines axles, gear and the other important spare parts extend the service life which are made by carbon steel and alloy steel through modulation or quenchs heat treatment procession.

The dialing mud plates transfer and material level control are fixed with protesting device which improves the plant efficiency of breakdown maintenance.

And it also make sure that in cannot easily damage the main spare parts during usage.

The reamer adopt the floating shaft structure which can eliminate and reduce the machines shaking and rocking times because of curve in principal axle after long time usage.

The blades of the reamer adopt the wear-resistant metallic materials coating technology which makes its life four times to seven times longer than the common reamer.

The lead has the function of slight pressure delivery and high pressure extrusion which make the machine save energy from fifteen percent to thirty percent.

They are applicable for the production of high-rate hollow bricks with the materials of coal gangue; shale; high-volume fly-ash; urban construction waste; gangue waste; inferior soil.

It can lift the brick groups and place them in the setting places, both wet adobe and dry adobe can be handled by this machine with its flexible adobe lifting hand.

Advantages Electric control, hydraulic drive, energy conservation, easy maintenance, low cost, smooth operation.

This equipment is composed of vehicle, chuck plate, adobe separating floor, lifting guide rod, steel rail, hydraulic system, electrical system.

1) Reliable structure, easy in installation and maintation.

2) Adopting advanced world famous brand components in Hydraulic parts, electric parts and operation parts.

3) High pressure gives the brick better quality.

4) Running in a high automatization and intellectualization, no pollution.

Project Design .

Product Display Packing&Delivery About Us Company Profile Professional Founded in 1976, nearly 40 years of manufacturing experience.

Professional researching and developing department ensures the advanced technology and reliable quality of our product Special Especially being professional in automatical control and hydraulic equipment.
