Medium Scale Automatic Clay Brick Manufacturing Plantlow Energy Consumption - China

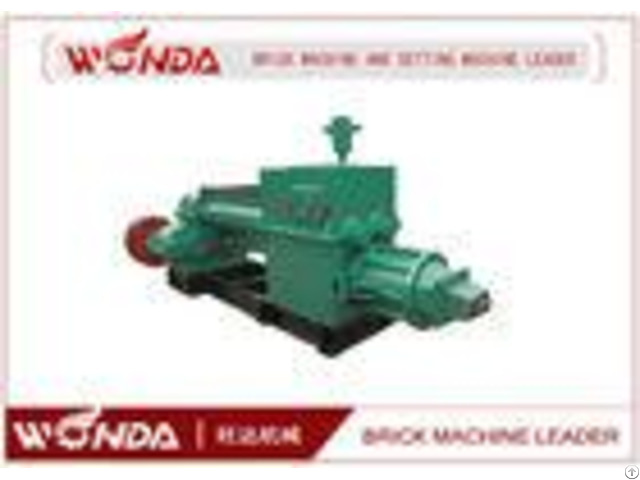

JZK 40 / 40 - 3.0 Clay Brick Making Machine Used In Medium Scale Brick Plants If you want to set up an automatic clay brick plant, you can consider our JZ series, like, JZ45and JZ40 vacuum extruder with lower cost.

The capacity from 5000-10000pcs/8h, it's better to make solid brick.

We will choose the proper type according to your detail requirement and actual situation.

This kind type of brick machine, can make hollow and soild brick as your need.

we recommend this kind of machine for the reasons as below - - - - 1 - Widely used in Medium scale brick plants.

| 2 - Adopt one motor thus compact structure and low energy consumption.

| 3 - Automatic clutch ensures stable running.

| 4 - Various raw materials applicable: Clay, Coal Gangue, Shale, Fly ash etc.

| 5 - Easy for hanlding and maintain.

| - - - - Advantages of clay brick making machine 1 - made of all steel structure; 2 - made by high quality steel plate welding; 3 - Clay brick making machine is suitable for the small brickyard or the area which is lack of electric power.

4 - Clay brick making machine is suitable for producing various solid brick and hollow bricks such as gangue, shale, fly ash, clay.

5 - The drift adopt the wear-resisting metal powder spray coating technology; The superior mixer shaft, the drift macro axis, the up and down body etc.

are all passed the aging, quenching and tempering process; 6 - The speed reducer gears are all the hard tooth surface; 7 - The clutch uses the screw compressor patent technology, Greatly improve the working life of equipment .

8 - Clay brick making machine has rational design, compact structure, smooth operation, can greatly reduce the consumption power by vibration in equipment operation process.

Technical Parameter - - - - Model | Production (pcs/h) | Power (kw) | SizeL*W*H (mm) | Forming moisture | Vacuum degree(Mpa) | Weight (kg) | JZK 60-4.0 | 15000-22000 | 90+200 | 8655*2450*2820 | 15%-18% | -0.092 | 22000 | JZK 55-4.0 | 14000-20000 | 75+180 | 8360*2800*3590 | 17%-19% | -0.092 | 20000 | JZK 50-3.5 | 13000-18000 | 55+132 | 3530*1800*2100 | 17%-19% | -0.092 | 165000 | JZK 45-3.0 | 10000-13000 | 110+132 | 4960*1680*1750 | 17%-19% | -0.092 | 11000 | JZK 40-3.0 | 8000-10000 | 90+110 | 4750*1500*1650 | 17%-19% | -0.092 | 8000 | JZK 35-2.0 | 6000-8000 | 55+75 | 3750*1340*1550 | 17%-19% | -0.092 | 6500 | JZK 30-2.0 | 4000-6000 | 45+55 | 2450*1220*1320 | 17%-19% | -0.092 | 3200 | - - - - Our Payment Terms - - - - 1 - | We usually accept T.

T, or Cash, or L/C, 30% for down payment, 70% pay as balance before loading.

| 2 - | It is about 30days to finish all the machines after receive the down payment.

| 3 - | We take pictures and videos of finished products, and test all the machines before delivery.

| - - - - Packaging Of Our Machines 1 - Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts.

.

2 - Some parts will be given soft protection before feeding in the container to make sure all the machine will be new when arriving at customer hand.

Delivery Of Our Machines 1 - We have been long term cooperation with many famous shipping agent.

Also we can arrange the shipment as your needs.

2 - After we get the B/L we will send it to you together with the Sales Contract, Invoice, Packaging List, etc.

Product Show
