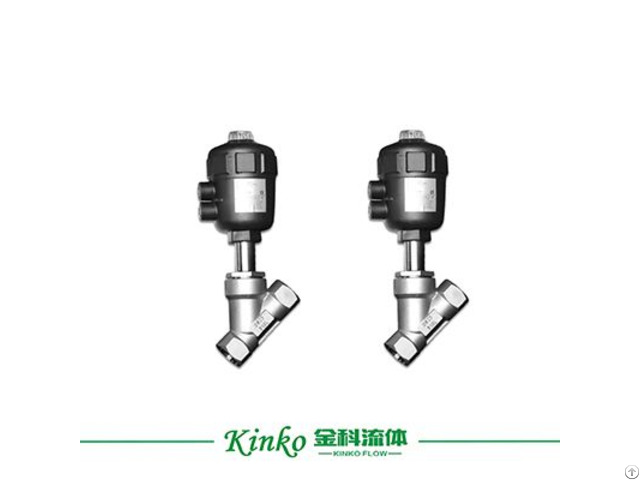

Plastic Polyamide Pneumatic Actuator Control Thread Angle Seat Valve - China

Angle Seat Valve Specification

Fluid Pressure: 0~1.6Mpa

Control Pressure: 4~8Bar

Control Gas: Neutral Gas Or Air

Body Material : CF8/304, CF8M/316

Seals Material : PTFE

Actuator Material: CF8/304, Polyamide Pa, Aluminum Alloy

Medium Temperature: -20°C~+180°C, +25°C~+220°C

Working Temperature: -20°C~+80°C

Medium Viscosity ≤600mm2/s

Control Type: Single Function Normally Closed, Single Function Normally Open, Double-Acting, Manual

Connection: Threaded(BPS, NPT), Welding, Tri-Clamp, Flange

Applicable Medium: Water, Alcohol, Oil, Feul, Steam, Neutral Gas Liquid, Organic Solvent, Acid And Alkali Solution

Optional Accessories: Proximity Switch, Solenoid Valve, Manual Limit, Intelligent Positioner Actuator Model：AT pneumatic actuator

Actuator Material：Aluminium Alloy

Action：double- acting, single acting normally closed, single acting normally open

Rotary Angle: 90°

Output Torque : 6.2NM-4944NM

Cylinder Size ： 32mm-270mm

Air Pressure：4~8bar

Working Temperature ：-20ºC~+80ºC

Standard GB/ISO/DIN Shrink film+Polyfoam+Carton/Plyw ood Case/Customer Requirements Our difference with others

1) All bolts & Nuts are SS304

2) All Piston are hard anodizing

3) Packing: Foam + small carton box to protect goods

4) Laser fonts on body
