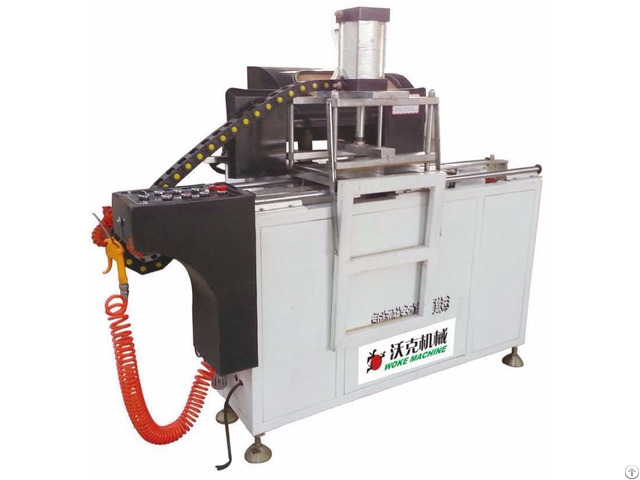

Pneumatic Double Axis Tenon Milling Machine - China

Model Number: JLX200

Features:

This machine adopts two-axis cutter system, no need to customize blade, tenon cutting and processing, easy operation.

With excellent pneumatic pneumatic-driven cooling system, easy operation and satisfying processing effects.

The cutter system and bearing holder are in precision processing technology, with more smooth rotation, lower noise and smaller vibration.

Technical Parameters:

Power 2 x 2.2 kw

Voltage 380V, 50Hz

Motor speed 2800 rpm

Cutter axis speed 3300 rpm

Work table size 450mm x 380mm

Milling height 70mm

Profile number 6-10 pcs

Work Pressure 0.6-0.8Mpa

Weight 120kg

Machine size 1250mm x 720mm x 1650mm

Company Contact:

• Posted By: Jinan Woke machinery Co., Ltd.

• Phone: +8613798478450

• Address: Diaozhen Industry park 7#, Jinan , Shandong , China

• Email:

• Website: http://www.doorwindowmachine.com

• Business Description: Woke Machinery Co., Ltd. is the leading manufacturer and exporter for door, window, curtain wall and insulating glass equipment.

  The operation management of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.

  We focus on technological innovation, with continuous improvement of technical research and development, and constantly develop high-end products with advanced level.

  Our machines include

  single-head or double-head cutting saw

  Corner crimping machine

  End milling machine

  end crimping machine

  Punching machine

  Copy Router

  Other auxiliary machines.

  accessory of the window & door processing machines

  We strictly enforce the ISO9001: 2000 international quality certification system, have created a respected brand in the same industry.

  By now we have exported our window and door machines to more than 30 countries, including Russia, French, Turkey, India, Egypt etc.

  We sincerely invite all business partners to visit our factory.
