Reverse Circulation Hammer Short For Rc China - China

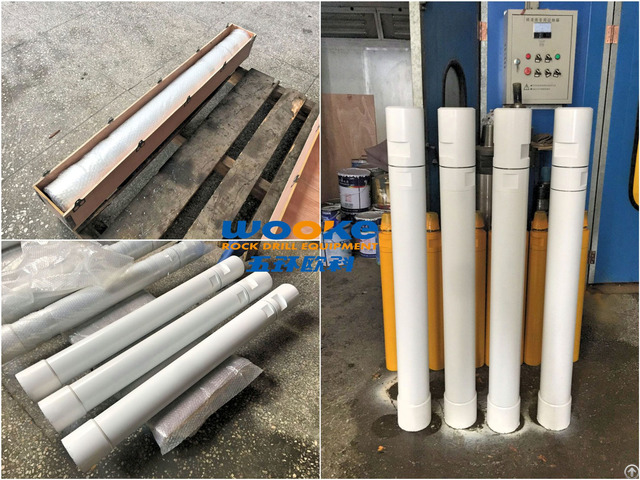

Reverse Circulation Hammer:

Easier and simpler top sub and sample tube assembly, main consumables are interchangable between The hammer with RE054 has been designed to give maximum performance in Exploration and Grade control applications.

The integral adaptor housing allows easy access to the long lasting sample tubes.

The enhanced performance stems from a simple robust design that reduces complicated maintenance procedures, providing less down time and greater savings.

The hammer also features improved flushing characteristics from high velocity air flow directed through the drill bit.

A variety of thread connections are available which includes options for both Remet and Metzke.

The tool is equipped with and integral Drill Bit Catcher system for added peace of mind.

It also has a sub adaptor body to suit most dual wall drill pipes.

The design features of the new combine to give an increase in drilling ROP, an increase in service life, and most importantly, greater sample recovery quality.

Drill bit diameters: 137-146mm (5 1/4''-6'')

Hole Range: ø135-ø152mm

Suitable for operation at air pressures: 15-35 bar.

available bits:

135mm (5 1/4'') 135mm (5 1/2'') 135mm (5 3/4'') 135mm (6'')

Company Contact:

• Posted By: Wooke Rock Drill Equipment Co.,Ltd.

• Phone: +86-717-6262131

• Address: Wujiagang Industrial Park, Yichang , Hubei , China

• Email:

• Website: http://www.wooke-intl.com/

• Business Description: Wooke is one of the leading and ISO9001: 2008 certified manufacturers of rock drill equipment established in 1995.

  Also we are one of the three biggest air pressure DTH drilling tools factories in China, as well as one of the best high-air-pressure DTH drilling tools manufacturers in China.

  We mainly produce and supply customers a variety of :

  --- High, medium and low air pressure DTH hammer and bits.

  --- API standard DTH drill pipes.

  --- Eccentric and symmetric casing systems.

  --- Hydraulic top hammers including tapered button bits, coupling sleeves and shank adapters.

  --- RC hammers and bits

  --- Kinds of adapters.

  All of our products have the features :

  * Capable of drilling in almost all ground conditions.

  * Designed for maximum performance

  * Made of quality steel with tungsten carbide buttons.

  * Percision machined and heat treated to the required hardness.

  When you purchase our drill tools, we are sure that you will be overwhelmingly satisfied with the performance and durability.
