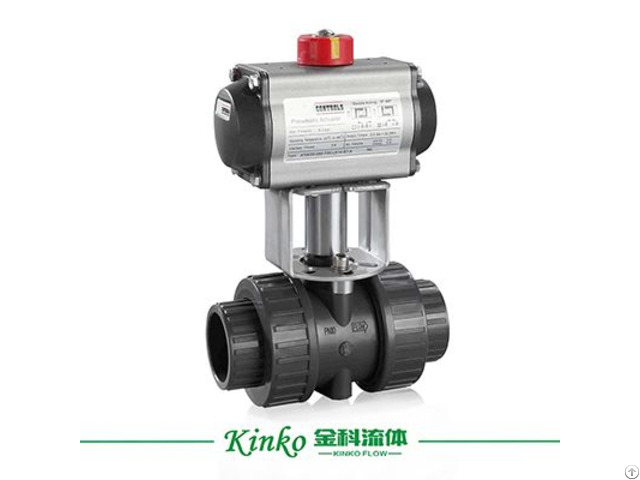

Upvc Plastic Double Union Pneumatic Ball Valve - China

Product Name Q691X-10U

Drive Way pneumatic

Valve Type ball valve

Connection ferrule

Structure floating straight through

Seal Material rubber NBR

Working Pressure 0~1.0Mpa/150LB

Medium Temperature -20℃~+120℃

Applicable Medium water, natural gas, oil, food, medicine, acid, alkali

Body Material UPVC

Port Size DN15-150

Actuator Model AT52D-AT105D

Actuator Material Aluminium Alloy

Action double acting

Rotary Angle 90°

Output Torque 20~270 N/M

Cylinder Size Φ52-105

Air Pressure 4~8bar

Working Temperature -20℃~+80℃

Standard GB/ISO/DIN

Air Acess G1/4" Shrink film+Polyfoam+Carton/Plyw ood Case/Customer Requirements Our difference with others

1) All bolts & Nuts are SS304

2) All Piston are hard anodizing

3) Packing: Foam + small carton box to protect goods

4) Laser fonts on body
