Bopp Tape Slitter Machine - China

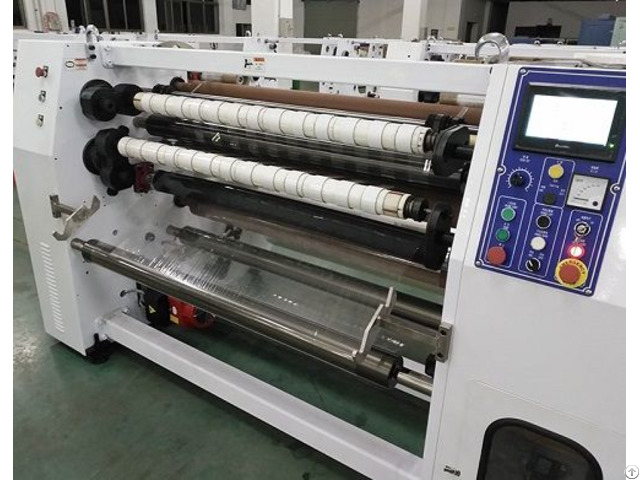

BOPP TAPE SLITTER MACHINE

Tape Slitter and Rewinder

Jumbo Roll Dispenser

Main Technical Parameters:

Model Slitting machine 1300

Four Shaft Automatic exchange Slitting machine 1600 Effective width 1280 mm width jumbo roll 1620 mm width jumbo roll

Max.

unwind diameter 800mm 800mm

Min.

slitting width 24mm 24mm

Max.

rewind diameter(shaft3") exchange 4 shafts 300mm

Could produce Max 1300meters lengt-h tape 300mm

Could produce Max 1300meters length tape

Machine Speed MAX 215meters/min MAX 215meters/min

I.D.of paper core 3” (76mm) 3” (76mm)

slitting blade 0.2x22x60mm 0.2x22x60mm

Main machine power 10HP 10HP

Transducer Mitsubishi Japan Mitsubishi Japan

Main Motor AC7.5HP Dongyuan Taiwan AC7.5HP Dongyuan Taiwan

Touch Screen 7” Touch panel XinJie brand 7” Touch panel XinJie brand

PLC Siemens Germany Siemens Germany

Steel plate 32 mmthickness, super-grinding machi-ning finish 32mm thickness, super-grinding machi-ning finish

Machine weight 2000KG 2000KG

ADHESIVE TAPE SLITTING MACHINE 1 SET

CORE CUTTING MACHINE 1 SET

CORE LOADING MACHINE 1 SET

MINI REWINDING MACHINE 1 SET

48MM WIDTH MOLD 1 SET

FEATURES:

1) Full-Automatic four-shaft exchange

2) PLC control system with touch panel operation.

3) Automatic screw roller system used for collecting the waste edge

4) Automatic labeling

5) Automatic loading jumbo rolls.

Loading and Unloading jumbo rolls is easy and convenient.

6) Sound-proof cover can reducing noise.

7) MAX Rewind diameter: 300MM ( Four Shaft Automatic exchange )

8) Machine Speed: MAX 215meters/min

9) Working life: 15 years
