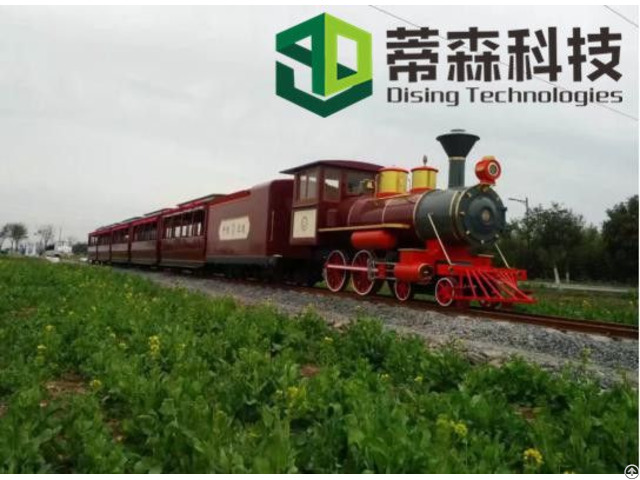

Wuhan Dising Open Type Amusement Park Mini Track Train With Ce Certification 63 Seats - China

1 - Feature and advantage: Theme Park Mini Track Train/ Locomotive with 63 Seats Manufacturer for Amusement Rides Mini Diesel Track Train with High quality & competitive price you.

Customer is welcome to visit our new showroom and factory located in Wuhan City, China.

2 - Specifications 2.1 DST02-6C-63A Open-type Sightseeing Mini Train Gauge: 600mm

Marshalling: locomotive + carriage*3

Speed: 7km/h

Crew: 21 *3=63

Mat limit slope: 30 per thousand

Restriction curve radius: 15m

Power: Powered by Japan Taiyo Genset 2.2 Ambient conditions and vehicle parameters 1) Project location height is not more than 2000 meters above sea level.

2) The air temperature is between -10 and 40 degree.

3) Electronic components must not be activated without dehumidification in relative humidity greater than 95% or condensation.

4) Carriage should be able to withstand wind and sand intrusion and salt fog corrosion.

5) Line gauge: 600mm

6) Limiting gradient: 30‰ 7) Radius of longitudinal curve of the track: 100m 8) Minimum railway curve radius: 20m, difficult area: 15m



2.3 Vehicle parameters 1) Marshalling: locomotive + carriage*3

2) The crew: 21 passengers*3=64 passengers

3) Overall size: full set: 26m (long) x 1.57m (wide) x 2.4m (high)

4) Speed: 0-7km/h, big curve, Uphill speed: 6.8km/h

5) Emergency braking distance: <4m at the highest speed

6) Frame corrosion protection: zinc rich primer twice and surface finish twice

7) Effect: cold smoke, steam whistle

8) Tour guide system

9) Three phase variable frequency motor 5.5KW*3

10) Engine: Japan TAIYO diesel generator set, Japan Kubota diesel engine)

11) Speed regulation mode: V-F variable frequency speed regulation

12) Voltage: control voltage, lighting voltage: 24V (safety voltage), power voltage AC 380V

13) Brake: working brake: DC braking, energy consumption braking; emergency braking: combined air braking.

14) The driver's seat: 1 seats

15) Air compressor: three phase air compressor

16) Windows: two sides solid wood window 17) Carriage frame: Q235 extrudate welding 18) Carriage roof: FRP

19) Interior: solid wood pinch plate

20) Bogie form: calculating the axle weight of 1.5 tons

21) Shock absorption system: metal coil spring 22) Floor: clad aluminum plate on bamboo board

23) Seat : solid wood seat 18 passengers/ carriage

24) Door: 6 doors for each carriage

25) Rain-proof: curtain

26) Vehicle floor height: 426mm(to rail surface ), recommended platform height: 250-400mm
