2400mm Diameter Polyethylene Data Buoy - China

Product Code: HZD-2400

The HZD-2400 Polyethylene data buoys are artificial signs that provide buoyancy carriers for monitoring instruments and also warn passing ships.

Applications: ocean, rivers or lakes.

- Meteorology monitoring

- Water current monitoring

- Waves direction and height

- Climate monitoring

- Environmental monitoring Ø Description:

The 2400mm Dia.

Polyethylene data buoys are artificial signs that provide buoyancy carriers for monitoring instruments and also warn passing ships.

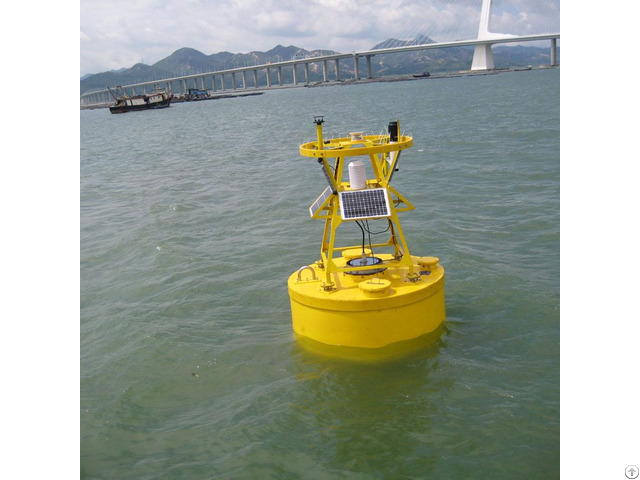

It consists of three parts: light tower, floating body and tail tube.

The light tower is used to install signal lights, antennas, solar panels, visibility, temperature and humidity detector, GPS etc.

The float body provides buoyancy for the buoy and sets up an instrument compartment which instruments and batteries will be put inside.

The tail tube is used to maintain the stability of the buoy.

There are buoy lifting eyes on top of the float body, which can be used for buoy lifting and deployment.

The bottom of the float body is equipped with 2 mooring eyes, which can connect with the anchor chain.

Ø Features:

-Environmental friendly

-Excellent buoyancy & stability

-High impact resistance

-High corrosion resistance

-Easy to deploy & service

-Long service life span

-High visibility color as per IALA recommendations Ø Certifications:

-IALA(Surface colors compliant to IALA E-108)

-ISO9001: 2015(Quality assurance)

-ISO14001: 2015

-ISO45001: 2018

Ø Options:

-Radar reflector

-Solar powered marine lantern

-UHMWPE top mark

-Mooring solution available

Ø Our service:

-On-site guidance for installation if by request.

-Warranty information: normally 12 months after deployment.

Ø Payment method:

-T/T

-L/C
