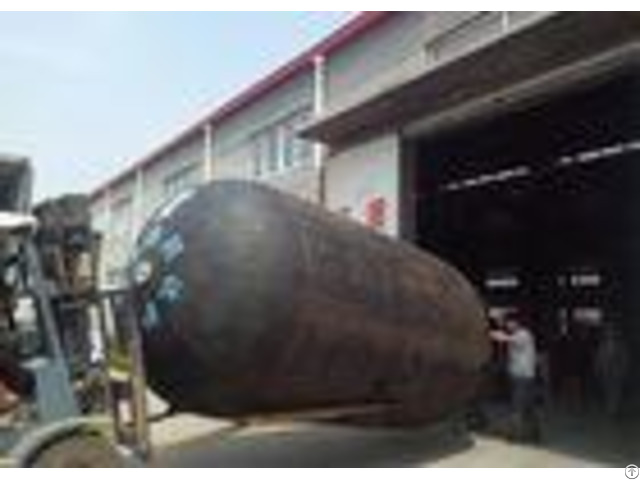

Double Inner Filling Of Pneumatic Marine Rubber Fender For Boats - China

Double Inner Filling Of Pneumatic Marine Rubber Fender For Boats In order to produce the qualified and famous China Brand of pneumatic fenders, ARD RUBBER invested the advanced production and test equipments, and invited the foreign experienced engineers of pneumatic fenders, which ensure all ARD pneumatic fenders are manufactured comply with ISO17357: 2002 - Therefore, ARD-RUBBER is the unique manufacturer of ISO17357 qualified Pneumatic Fenders in China.

In order to protect your maritime values, ARD-RUBBER strongly recommends the use of ISO certified Pneumatic Fenders while performing the high quality needed for safe berthing during ship to ship operations involving bunkering or discharging of oil or gas, and ship to port operation Advantages of ARD marine rubber fender: * Absorb more energy, less reverse impact on the ships * More flexible, easy installation * Long term service life * Not being bent out of shape under pressure * Good air tightness, safety and reliability * Durable, practical and economical * Good quality have been checked by many buyers * Optional tire and chain, can provide chain with hot galvanizing or stainless steel(304, 312, 316) * Optional end fittings for the better suitable of applications Notes about ARD marine rubber fender * Frequently check whether the fender body si damaged and whether the pressure is normal, and the valve core must be replaced every six moths * The steel wire should wrap the rubber pipe, when trying steel wire to pneumatic rubber fender in case the fender is stabbed * The surface or subject next to the pneumatic rubber fender cant be hard and sharp-pointed in case the pneumatic rubber fender is stabbed * The accessories and jips nuts cant be loose when testing the internal pressure * The rope net should be reliable, the steel wire used for hanging metal parts and the hook link cant be tied in disorder.

Technical performance of pneumatic rubber fender - - - - Specification DXL(m) | 0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) | Weight(kg) | Reaction force(KN) | GEA (KJ) | Weight (kg) | Reaction force(KN) | GEA (KJ) | 0.5X1.0 | 25 | 674 | 6 | 25 | 85 | 8 | 0.6X1.0 | 32 | 74 | 8 | 32 | 98 | 11 | 0.7X1.5 | 50 | 137 | 17 | 50 | 180 | 24 | 1.0X1.5 | 80 | 182 | 32 | 80 | 239 | 45 | 1.0X2.0 | 100 | 257 | 45 | 125 | 338 | 63 | 1.2X2.0 | 120 | 297 | 63 | 165 | 390 | 88 | 1.35X2.5 | 165 | 427 | 102 | 226 | 561 | 142 | 1.5X3.0 | 315 | 579 | 153 | 370 | 761 | 214 | 1.7X3.0 | 405 | 639 | 191 | 436 | 840 | 287 | 2.0X3.5 | 590 | 875 | 308 | 632 | 1150 | 430 | 2.5X4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 | 2.5X5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 | 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 | 3.0X6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 | 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 | 3.3X6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 | 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 | 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 | 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 | 4.5X12 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 | Note: The weight is the fender body weight(without tires and chain), with weight error of 10% and counterforce error of 10% | - - - - FAQ Q1: Are you factory or trading company? A: Qingdao Aorunda Rubber Industry Co., Ltd is the company and factory, located in Jimo City, Qingdao, near to Qingdao port and Qingdao airport, which is convenient for transportation.

Q2: Whats your delivery time and payment terms? A: Delivery time is according to customers size and order qty.

The payment terms you could choose are T/T, L/C at sight, Western Union and so on.

Q3: What about your warranty time? A: Our warranty period is 24 months.

During this time, any problems about products from our factory, we solemn promise to change and repair them for free;if problems from customers improper operating, we could provide free guidance and repair materials
