10 Inch X 2-1 4 Inch Trailer Hydraulic Uni Servo Brake Assembly - China

Capacity: For 3, 500 lbs.

Axle

Trailer Galvanized Electric Brake Part No: HU10B

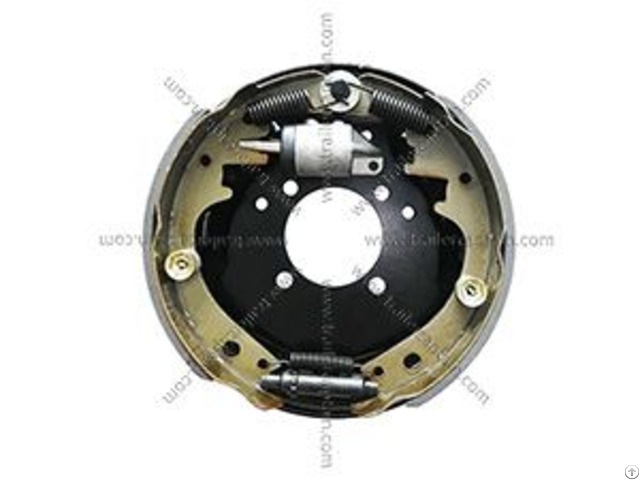

Description: 10 inch x 2.25 inch trailer hydraulic uni-servo backing plate is electrophoretic-coated.

10 inch hydraulic drum brakes are rated 3.5k lbs per pair.

10” x 2.25” trailer hydraulic backing plate is fully assembled for a quick and easy installation.

The hydraulic drum brakes for trailers are ready to bolt to the 4-hole mounting flange.

These hydraulic trailer brake kit interchanges with most major brands of axles, without modifying the axle or mounting flange, such as Demco, Atwood, Axletek, Lippert and Dexter.

Please note that the hydraulic brake assembly will deliver 20 percent braking when traveling in reverse.

Features

l Hydraulic drum brake assemblies are designed for use with a surge-type trailer brake actuator (sold separately).

l Fully Assembled; Quick and easy installation.

l E-coated backing plates resist wear and corrosion.

l Periodic manual adjustment required.

l These 10" hydraulic uni-servo trailer brakes exchange with most axle brands including Dexter, AL-KO, etrailer, Demco and many others.

Specifications Marine Trailer Brakes

Ø Dimension: 10 inch x 2 1/4 inch

Ø Axle Capability: 3500 lbs Axle (13", 14”, 15" Wheel)

Ø Mounting Flange Bolt Pattern: 4 bolt

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition 10 Inch Hydraulic Drum Brakes For Trailers

² 10” x 2 1/4" Bonded Uni-Servo Brake Shoe Kit x 1

² E-Coated Back Plate x 1

² Single-Servo Wheel Cylinder x 1

² Springs x 2

² Adjuster X 1
