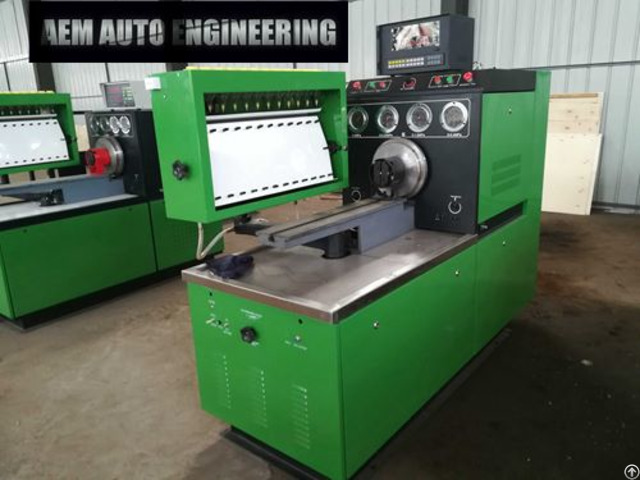

12psb Diesel Fuel Injection Pump Test Bench - China

Characteristics

1 - Variable frequency speed regulation;

2 - Small deceleration and large output torque;

3 - High measurement precision;

4 - Overvoltage protection, overload protection and short-circuit protection;

5 - Ten kinds of rotation speeds presetting;

6 - Constant temperature control;

7 - Ultra-low noise;

8 - Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

9 - Speed, count, temperature, air pressure, advance angle are displayed on 15-inch LCD;

10 - Built-in air resource.

Function

1 - Measuring each cylinder’s injected oil quantity at various rotation speeds;

2 - Checking each cylinder’s injection time statically;

3 - Checking the mechanical speed governor;

4 - Checking the electromagnetic valve of distribution pumps;

5 - Checking the pneumatic speed governor’s performance;

6 - Checking the pressure compensator’s performance;

7 - Measuring the returned oil quantity of distribution pumps;

8 - Measuring the internal pressure of the distribution pump body;

9 - Checking the pneumatic speed governor’ s vacuum performance;

10 - Measuring rack travel;

11 - Checking the sealing of fuel injection pump body.

Technical Parameters

1 - Adjustable rotation speed range: 0～4000RPM

2 - Double series of graduates: 45cc and 1500cc (optional)

3 - Volume of oil tank: 60L

4 - Temperature stabilization: 40±2℃

5 - Test oil filtering unit: 5μ

6 - DC supply: 12V/24V

7 - Fuel feed pressure: low: 0～0.4MPa, high: 0～4Mpa

8 - Air pressure: 0～0.3MPa, 9 - 3-phase power supply: 380V/50Hz or according to requirements

10 - Flywheel inertia’s moment: 0.8KG•M2

11 - Center height: 125MM

12 - Output power: 7.5KW, 11KW, 15KW or according to requirements

13 - Overall dimensions(MM): 2360×960×1870 or according to requirements

14 - Net weight(KG): about 900
