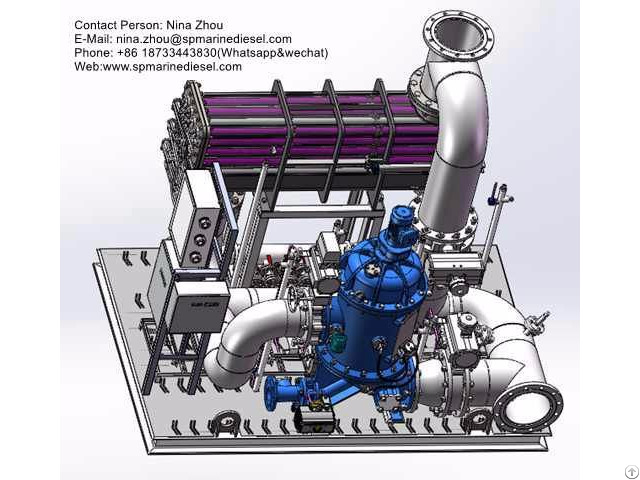

Ballast Water Treatment System Ahead 200m3 H - China

ballast water management system with certification from China.

Treatment Capacity：100m3/h—5000 m3/h

Filtration Precision：50 μm

BWMS Treatment Type

Filter + UV system low pressure lamp / medium pressure lamp

System features:

1 - The system with the least hazards to environment

Adopt the technology of "filtering + ultraviolet", belonging to physical treatment method

2 - The size of system is so small that the whole system or disassembled units can be installed

3 - System with less energy consumption, and ultraviolet tube with long service life

4 - Ultraviolet germicidal irradiation system with low pressure and high strength is adopted, whose energy consumption is less and light conversion rare is high

5 - Service life of ultraviolet tube up to 12000 hours

6 - Full-automatic backwash and scrubbing (refers to tube scrubbing)

7 - There is no hazardous substances created by secondary pollution

8 - The system menu is easy to operate and maintain

2.2Specifications and type of the system:

Type：AHEAD- I

The operating parameters of AHEAD ballast water management system are as follows:

 Processing capacity：200 m3/h

 Supply voltage：AC 380V，60/50HZ ，3Ø

AC220V, 60/50HZ ，1Ø

• Power consumption：14 KW+/Sludge pump7.5KW（ Discontinuous work）

AC 380V，60/50HZ ，3Ø 2KW+/Sludge pump7.5KW（ Discontinuous work）

AC220V, 60/50HZ ，1Ø 12KW

 Filtration grade： 50 µm

 Operating pressure：2~5 kg/cm2

 Air supply： 7 kgf/cm2

 Covering area ：3.00 m2

nina(dot)zhou(at)spmar inediesel(dot)com

Company Contact:

• Posted By: Qinhuangdao Shuangpu Mechnical and Electrical Equipment Co., Ltd.

• Phone: 8618733443830

• Address: 15F A01, JinYuan Int’l Commercial Building, No.146, Hebei Str., Haigang District, Qinhuangdao City, , QINHUANGDAO , HEBEI , China

• Email:

• Website: http://www.spmarinediesel.com

• Business Description: SUPPLY CATALOGUE:

  1.

  Main/Auxili ary engine for MAN & DAIHATSU & CUMMINS & YANMAR &PIELSTICK & WARTSILA & WEICHAI spare parts.

  【MAIN ADVANTAGE TYPE】

  MAN TWO STROKE S46/50/60MC, L35MC & FOUR STORKE MANL16/24,L21/31,L23/30,L 27/38

  DAIHATSU DK-20/28 DC-17 ,DE-18 & YANMAR N330/EY18

  PIELSTICK PC2-5,PC2-6 WEICHAI & ZICHAI SERIES (ALL CHINESE GENERATOR BRAND)

  2 - Turbocharger, Purifier, Air compressor, Governor, Water pump, machinery & deck machinery, etc.

  3 - Ballast water management system with certification from China.

  Treatment Capacity：100m3/h—5000 m3/h

  Filtration Precision：50 μm

  【BWMS Treatment Type】

  Filter + UV system low pressure lamp / medium pressure lamp

  Filter + Electrolytic system
