Digital Track Gauge For Railway Turnout Level Measurement - China

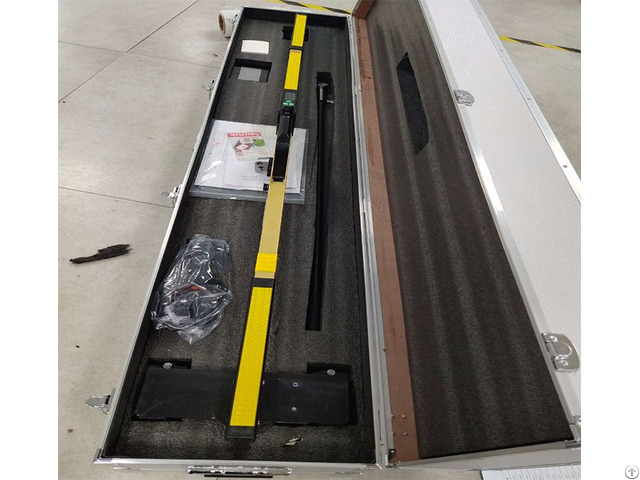

Digital track gauge for railway switch geometry and cant measuring

Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation, check rail gauge and back to back distance through microelectronics, embedded and sensor technologies and OLED display screen.

Features

1 - Large LED backlit display: especially suitable for day outside and dark night 2 - Quick calibration operation: simple measurement process 3 - Large capacity battery: long standby time 4 - Accurate measurement: keep long-term stability 5 - Temperature compensation : working temperature is -30~+55℃ 6 - Insulated design 7 - Anti-electromagnetic interference 8 - Waterproof: could use in rainy day 9 - power saving function: no operation within 15 minutes, the system will automatically shut down.

10 - Approval by CHINA ACADEMY OF RAILWAY SCIENCES

PRODUCT SPECIFICATIONS

Model(1435mm)

GJC-TJG1

Track gauge(mm)

1384-1470

Check rail gauge(mm)

1364-1450

Guard rail face gauge(mm)

1344-1430

Superelevation measuring range(mm)

-200~+200

Superelevation division value(mm)

0.10

Track gauge division value(mm)

0.1

Track gauge max indication error(mm)

±0.25

Superelevation error(mm)

±0.45

Application rail line

railway speed less than 250km/h

Customize

1000, 1067, 1435, 1520, 1600, 1676mm track gauge are available
