Digital Track Gauge For Switch Geometry Measuring - China

price: 1050.00 Dollar US$

Digital Track Gauge For Switch Geometry Measuring

Products Photos Catalog Digital Track Gauge Photos Catalog

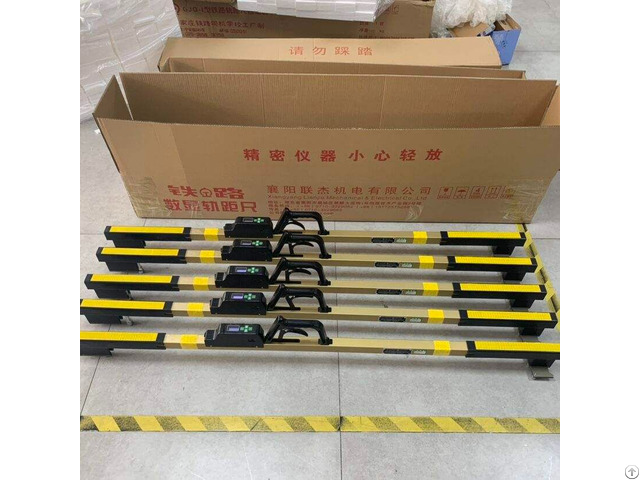

Digital Track Gauge

Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation, check rail gauge and back to back distance through microelectronics, embedded and sensor technologies and OLED display screen.

Features

1 - Large LED backlit display: especially suitable for day outside and dark night 2 - Quick calibration operation: simple measurement process 3 - Large capacity battery: long standby time 4 - Accurate measurement: keep long-term stability 5 - Temperature compensation : working temperature is -30~+55℃ 6 - Insulated design 7 - Anti-electromagnetic interference 8 - Waterproof: could use in rainy day 9 - power saving function: no operation within 15 minutes, the system will automatically shut down.

10 - Approval by CHINA ACADEMY OF RAILWAY SCIENCES

Specification

Model(1435mm)

GJC-TJG1

Track gauge(mm)

1384-1470

Gauge rail check gauge(mm)

1364-1450

Guard rail face gauge(mm)

1344-1430

Superelevation measuring range(mm)

-200~+200

Flangeway Clearance(mm)

20-107

Superelevation division value(mm)

0.10

Track gauge division value(mm)

0.1

Track gauge max indication error(mm)

±0.25

Superelevation error(mm)

±0.45

Application rail line

railway speed less than 250km/h


Company Contact:


  • Phone: +8615671313697

  • Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China

  • Email: Email


Published date: April 8, 2024

  • Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013 - We are the leading manufacturer for railway equipment which are being used all over the world.

    The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world.
