Precise Automotive Equipment 3d Four Wheel Tire Alignment Multi Vehicle Database - China

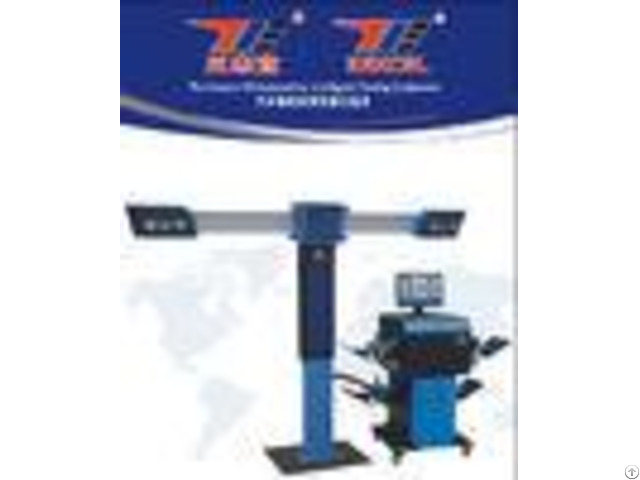

Precise Manual Automotive Equipment 3D Wheel Alignment With CE Certificate Product Overview: HD Camera, USB Interface, FPGA Technology, Temperature Compensation, Intuitive, 3D dynamic simulation, Real-time Measuring, Less demand to lift level, high precision and quality, Need not wheel Compensation.

Combined with 4 mini target plates, 2 high-definition cameras 3D system provides the most economic and accurate four-wheel alignment.

Camera constantly take pictures from mini target plates and do precise calculation, the measurement data immediately shown.

Camera calibration has been done in the factory.

The camera is fixed on the beam and no need to adjust.

The target does not have electronic devices, wire and battery, no need to calibrate Main feature 1 - Windows 7 computer system, 3D wheel alignment software ; 2 - Easy to operate with guiding menu, to read alignment database within 3 minutes; 3 - The fault of machine can be reduced as no electric element & battery & transmission cable & bluetooth & infrared ray on the target plates ; 4 - HP computer ; 5 - Calibration made before delivery, convenient to install and use, no influenced by working site ; 6 - Set with Volkswagen dedicated application, can measure toe-arc for A6, B5; 7 - 26kinds of language for different countries and districts ; 8 - Suit for measurement of vehicle with super-low chassis ; 9 - Integrative cabinet, simple but perfect ; 10 - 25000 vehicle database, online updating .

Standard Configuration: Compact cabinet, 32' LCD monitor, canon printer, target plate, Pylon bracket, Brake fixer, Steering wheel fixer, Wedge block, Turntable, Transition block of turntable Software function Software Features: Basic function: camber, caster, Kingpin Inclination, toe angle, set back, Thrust Angle Extended function: axis deviation measurement, wheel deviation measurement, Animation, single-wheel measurement, the vehicle lift measurement function, straight steering wheel function, Alignment platform Levelness detecting function, engine bracket adjustment, Locking toe measurement function, Toe curvature measurement Specification - - - - Parameter | Precise | Resolution | Test Range | Total testing Range | Total toe | 2(0.03) | 0.6( 0.01) | 20 | 30 | Individual toe | 2(0.03) | 0.6( 0.01) | 10 | 20 | Camber | 2(0.03) | 0.6( 0.01) | 10 | 10 | Castor | 4(0.06) | 0.6(0.01) | 20 | 30 | SAI / KPI | 4(0.06) | 0.6(0.01) | 20 | 30 | Setback | 2(0.03) | 0.6(0.01) | 10 | 20 | Thrust angle | 2(0.03) | 0.6( 0.01) | 10 | 20 | Wheelbase difference | 2(0.03) | 0.6(0.01) | 10 | 20 | Track width difference | 2(0.03) | 0.6(0.01) | 10 | 20 | Wheel size working range | 13-24 | - - - -
