Rail Profile Grinding Machine Petrol Railway Grinder - China
price: 2700.00 Dollar US$

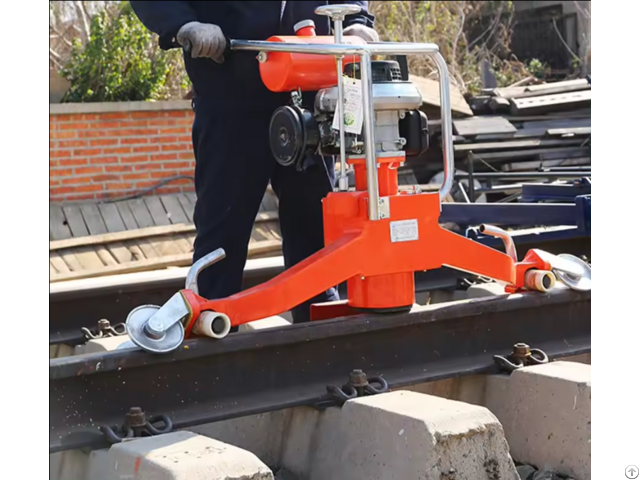

NGM-6.0 Rail Profile Grinder
This machine is powered by the M165 two-stroke petrol engine imported from Spain.
It is a small machine used for forming and grinding the rail head welding joints and surface repairs.
It is suitable for rails of 43~75kg/m.
The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.
Detailed Images Rail Profile Grinding Machine Petrol Rail Grinder Specification Model
NGM-6.0
Type
Rail Profile Grinder
Material
Stainless Steel
Dimensions (L x W x H) (mm)
1410*500*850mm
Engine
2 stroke petrol engine M165
Power
6.0kW
Grinding stone speed
≥3900r/min
Grinding stone inclination
0~90°
Grinding stone feeding stroke
42mm
Grinding stone specification
φ150xφ55x70mm
Fuel tank volume
4.5L
Profile wheel span
1000mm
Feed adjustment accuracy
0.125mm
Weight
60kg
Company Contact:
- Posted By: Wuhan linkage track equipment co., ltd
- Phone: +8615671313697
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: January 10, 2025
- Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013 - We are the leading manufacturer for railway equipment which are being used all over the world.
The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world.
