Railway Saving Back Tool For Measuring 1000mm 1067mm 1435mm 1520mm 1600mm 1676mm - China
price: 6000.00 Dollar US$
Benefits

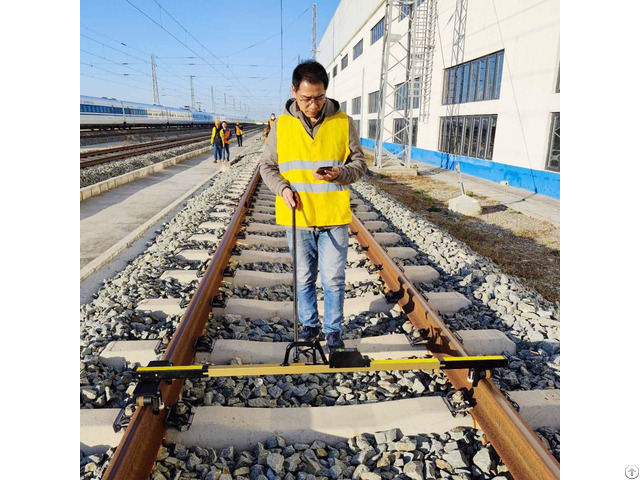

1 - For track fine turning, measuring while walking, no need to bend over, save your time and man power.
2 - Inspection work with big machine working scenario, high working efficiency, save time.
3 - Portable and lightweight, only 6.5kg, can use for temporary inspection our of the "Skylight"
4 - Can use for most working scenario in the yard, such as rail gap, rail squeezing out of edge, rail lateral wear, small radius
curve.
5 - Bluetooth connection, data logged in and analysis system.
Product Paramenters
Model (1435mm)
GJC-JJG0
Track gauge
1410-1470mm
Superelevation measuring range
-185~+185mm
Display mode
OLED display and hand-held terminal display
Supply Voltage
DC3.4V~5.2V (rechargeable battery)
Superelevation division value
0.05mm
Working temperature
-30℃~+55℃
Insulation performance
>1MΩ
Track gauge division value
0.01mm
Track gauge max indication error
≤±0.25mm
Company Contact:
- Posted By: Wuhan linkage track equipment co., ltd
- Phone: +8615671313697
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: April 17, 2024
- Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013 - We are the leading manufacturer for railway equipment which are being used all over the world.
The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world.
