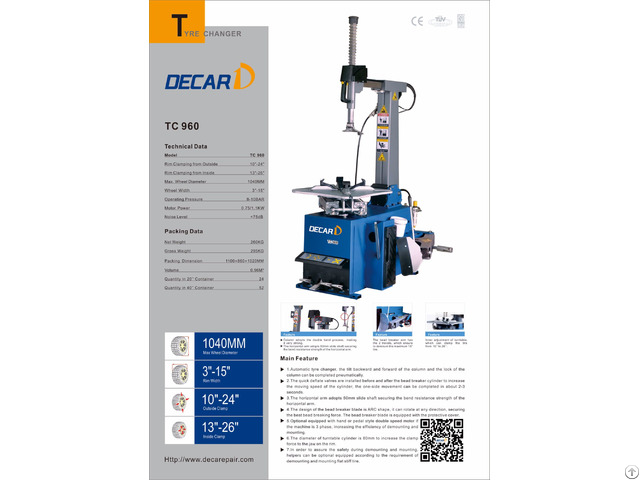

Tc960 China Fully Automatic Tyre Changer Wholesale Price - China
price: 2500.00 Dollar US$
Main Feature 1 - Automatic tyre changer, the tilt backward and forward of the column and the lock of the column can be completed pneumatically.
2 - The quick deflate valves are installed before and after the bead breaker cylinder to increase the moving speed of the cylinder, the one-side movement can be completed in about 2-3 seconds.
3 - The horizontal arm adopts 50mm slide shaft securing the bend resistance strength of the horizontal arm.
4 - The design of the bead breaker blade is ARC shape, it can rotate at any direction, securing the best bead breaking force.
The bead breaker blade is equipped with the protective cover.
5 - The hexangular shaft is made of S41 hexangular steel, which can avoid the distortion when operating the stiff tire.
6 - Column adopts the double bend process, making it very strong.
7 - The bead breaker arm has the 2 travels, which ensure to demount the maximum 15" tire.
8 - Optional equipped with hand or pedal style double speed motor if the machine is 3 phase, increasing the efficiency of demounting and mounting.
9 - The diameter of turntable cylinder is 80mm to increase the clamp force to the jaw on the rim.
10 - In order to assure the safety during demounting and mounting, helpers can be optional equipped according to the requirement of demounting and mounting flat stiff tire.
Model TC960
Rim clamping from outside 10"-24"
Rim clamping from inside 13"-26"
Max.
Wheel Diameter 1040mm
Wheel Width 3"-15"
Operating Pressure 8-10bar
Motor Power 0.75/1.1KW
Noise Level less than 75dB
Net Weight 260kgs
Gross Weight 295kgs
Packing dimension 1100x860x1020mm
Volume 0.96cbm
Qty in 20GP container 24pcs
Qty in 40GP container 52pcs
Company Contact:
- Posted By: Decar Automotive Equipment Co., Ltd
- Phone: whatsapp: 008615951552422
- Address: South East Industrial Park, Yandong Town,Yancheng Jiangsu China, Yancheng , Jiangsu , China
- Email:
- Website: http://www.decarepair.com
Published date: October 27, 2017
- Business Description: We are the manufacturer with 15-year experiences producing car and truck tyre changer, wheel balancer, wheel alignment and car lifts.
Our advantages
* 15-year experience: professional technical service, know well about related markets
* Certificate: CE, TUV, ISO
* 12000sq .
m .
factory: large production and storage capacity
* After-sale service: well-trained sales team provide service within 24hours
